    Green Geotextile Military Gabion Box Zinc - Aluminum Coated Type

    Ask Lasest Price
    Brand Name : SHUXIN
    Model Number : Green Geotextile Military Gabion Box Zinc - Aluminum Coated Type
    Certification : ISO CE SGS COC
    Price : Negotiated
    Payment Terms : Western Union, MoneyGram, T/T, L/C
    Delivery Time : 15 working days
    Supply Ability : 100 units per week
    • Product Details
    • Company Profile

    Green Geotextile Military Gabion Box Zinc - Aluminum Coated Type

    Green Geotextile Military Gabion Box Zinc - Aluminum Coated Type


    What is the defense barrier ?

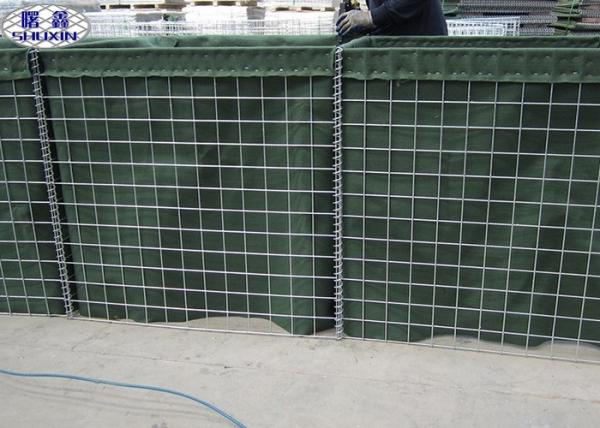

    The Military Gabion Box unit is a multi-cellular wall system manufactured from welded Zinc-Aluminum coated /hot dipped galvanized steel wire mesh and joined with vertical,helical coil joints.
    The
    Military Gabion Box units are lined with either beige or green colored heavy-duty non-woven polypropylene geotextile.Military Gabion Box can be filled with sand, earth, cement,stone, then as a defence wall or bunker and widely used in the military to protect safety.


    Specification of Defensive barrier :


    1) wire diameter: 4mm-5mm
    2) hole: 2''x2'',3''x3'',4''x4''
    3) hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
    4) geotextile: in non-woven geotextile,color can be green,beige-sand color.


    Military Gabion Box Defensive Barrier Specification

    ModelHeightWidthLengthInternal Cells
    SX-1(M1)54”(1.37m)42”(1.06m)32’9”(10m)5+4=9 cells
    SX-2(M2)24”(0.61m)24”(0.61m)4’(1.22m)2 cells
    SX-3(M 3)39”(1.0m)39”(1.0m)32’9”(10m)5+5=10 cells
    SX-4(M4)39”(1.0m)60”(1.52m)32’9”(10m)5+5=10 cells
    SX-5(M5)24”(0.61m)24”(0.61m)10’(3.05m)5 cells
    SX-6(M6)66”(1.68m)24”(0.61m)10’(3.05m)5 cells
    SX-7(M7)87”(2.21m)84”(2.13m)91’(27.74m)5+4+4=13 cells
    SX-8(M8)54”(1.37m)48”(1.22m)32’9”(10m)5+4=9 cells
    SX-9(M9)39”(1.0m)30”(0.76m)30’(9.14m)6+6=12 cells
    SX-10(M10)87”(2.21m)60”(1.52m)100’(30.5m)5+5+5+5=20 cells
    SX-11(M11)48”(1.22m)12”(0.30m)4’(1.22m)2 cells
    SX-12(M 12)84”(2.13m)42”(1.06m)108’(33m)5+5+5+5+5+5=30 cells
    SX-19(M 19)108”(2.74m)42”(1.06m)10’5”(3.18m)6 cells

    Defensive Barrier Application :


    ♦ Perimeter security and defense walls
    ♦ Equipment revetments
    ♦ Personnel and material bunkers
    ♦ Observation points
    ♦ Defensive firing positions
    ♦ Guard posts
    ♦ Protection engineering of seaside area
    ♦ Border crossing checkpoints
    ♦ Protecting existing structures
    ♦ Flood control retaining wall



    FAQ :


    Q: Are you trading company or manufacturer ?
    A: We are factory.


    Q: How long is your delivery time?
    A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.


    Q: Do you provide samples ? is it free or extra ?
    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


    Q: What is your terms of payment ?
    A: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance ,balance before shippment.


    If you have another question, pls feel free to contact us .
