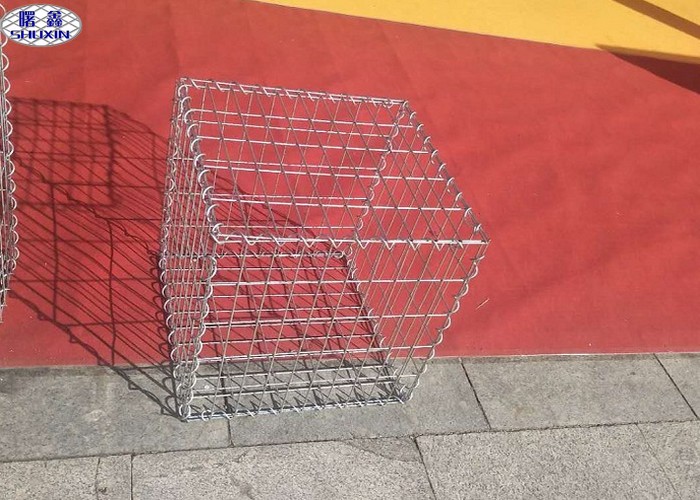

Hot Dipped Galvanized Welded Wire Netting Gabion Box Baskets
Welded gabion box is made of high quality low carbon steel wire, in strict
accordance with BS1052:1986 standard through automation, precision
and accurate processing machinery and equipment welding row after
forming, then it use electro-galvanized, hot dip galvanized,
coated, dip or Galfan and other processes where the surface
passivation, plastics processing.
Details of welded gabion box :
Material: Galvanized steel wire or Galfan / zinc-5%aluminum wire
Use Life: 10-20 years
Price: 9.8$-59.8$/set
Wire diameter: 3.0mm- 6.0mm
Aperture: 25*50mm 50*50mm 75*75mm 76.2*76.2mm 50*100mm etc
Gabion size:1*1*1m 1*0.5*1m 1*1*2m or as request.
Finish: hot dipped galvanized,galfan wire,PVC coated
Welded method: welded after galvanized or galvanized after welded
Packing: Wrapped with shrink film then packed in wooden fumigation pallet
or iron pallet
| Nominal Box sizes ( m) | No. of diaphragms (no.) | Capacity per box (m3) |
| 1.0 × 1.0 × 0.5 | Nil | 0.50 |
| 1.0 × 1.0 × 1.0 | Nil | 1.00 |
| 1.5 × 1.0 × 1.0 | Nil | 1.50 |
| 2.0 × 1.0 × 0.5 | 1 | 1.00 |
| 2.0 × 1.0 × 1.0 | 1 | 2.00 |
| 3.0 × 1.0 × 0.5 | 2 | 1.50 |
| 3.0 × 1.0 × 1.0 | 2 | 3.00 |
| 4.0 × 1.0 × 0.5 | 3 | 2.00 |
| 4.0 × 1.0 × 1.0 | 3 | 4.00 |
Welded gabion box advantages:
- Blends easily and harmoniously with the natural surroundings.
- Low cost alternative to concrete or masonry structures.
- Very high resistance to natural forces due to better tensile
strength.
- Can withstand any unpredictable movement or settlement without loss
of stability.
- Simple and speedy installation, making it cost effective.
- Quality finish and appearance is more aesthetically pleasing.
- More rigid than woven mesh resulting in a more uniform finish when
built.
- Quicker and cheaper to install than Woven Mesh gabions because no
pre-stretching required.
- Special gabions sizes and mesh such as gabions with 4mm front mesh
and 3mm mesh else can be available.
How to install welded gabion box?
Step 1. Ends, diaphragms, front and back panels are placed upright on the
bottom section of wire mesh.
Step 2. Secure panels by screwing spiral binders through the mesh openings
in adjacent panels.
Step 3. Stiffeners shall be placed across the corners, at 300mm from the
corner. Providing a diagonal bracing, and crimped over the
line and cross wires on the front and side faces. None are needed
in interior cells.
Step 4. Gabion box filled with graded stone by hand or with a shovel.
Step 5. After filling, close the lid and secure with spiral binders at the
diaphragms, ends, front and back.
Step 6. When stacking tiers of the welded gabion box, the lid of the lower
tier may serve as the base of the upper tier. Secure with
spiral binders and add pre-formed stiffeners to exterior cells
before filling with graded stones.
