Galvanized Welded Wire Mesh Military Sand Wall Security Barriers
Introduction of Military Barriers :
Military Barrier units can be used for perimeter protection, border control and
temporary accommodation bunkers.

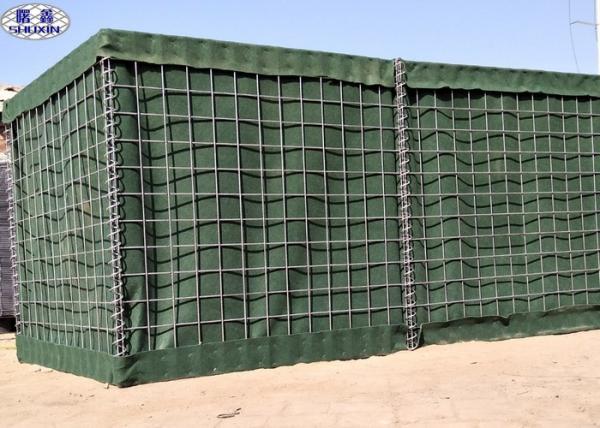

The barrier factory unit is a multi-cellular barrier system
manufactured from welded Zinc-Aluminium
coated steel mesh or galvanized steel wire mesh and lined with
heavy-duty non-woven polypropylene geotextile.
The unique design, strength and versatility enable corners to be
constructed easily, shaping the defensive barrier
to the surrounding landscape and when joined and filled, the system
can be used to create barriers of exceptional
strength and structural integrity.
Quick View of Military Barriers:
Material : Low-carbon steel wire
Wire Diameter : 4-5.0mm
Spring Diameter : 4.0-4.5mm
Mesh Size : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size : 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
Geotextile : In heavy duty non-woven polypropylene.
Finish : Hot Dipped Galvanized after /before welding, Galfan Coated before
welding
The barriers come in a variety of sizes. Most of the barriers can also be
stacked, and they are shipped collapsed in compact sets. Example
dimensions of typical configurations are 1.4m x 1.1m x 9.8m (4'6" x
3'6" x 32') to 2.1m x 1.5m x 30m (7' x 5' x 100').
The Common Specification of Military Barriers as followed:
Military Barrier Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Military Barriers Features :
Military walls can be built to any required length and to any height. The unique
joining system allows the user great flexibility in configurations
and requirements. One of the key advantages of the system is that
any readily available infill material can be utilised. Sand,
rubble, rocks, soil, concrete and even snow have been successfully
used.
Rapid construction is another key feature of the product. A typical
wall of units equivalent to approximately 1500 sandbags, can be
erected and filled by two men and a single common loader in less
than twenty minutes. An equivalent wall constructed of sandbags
would take 10 men 7 hours to build.
Military Barriers Application:
- Perimeter security , Defensive barriers
- Equipment revetments
- Personnel bunkers, Observation points
- Guard posts, Protecting existing structures
- Contraband search areas, Highway checkpoints, Border crossing
checkpoints
- Traffic management, Hostile vehicle mitigation
