3 Cells Defensive Bastion Wall For National Defense SGS
Certification
For a soldier, there's no greater comfort than having a nice, thick
wall between you and the enemy.So a fast and strong Protection Wall
is very important, Welded Barrier Basket was invented in this
way.Dated on May, Anping Shuxin Wire Mesh Company exported 3300
units 3 cells Defensive Barriers to Kenya's Ministry of National
Defense Department.
Brief Introduction of 3 Cells Welded Gabion Basket
1. Wire Diameter: 4.0mm
2. Mesh Size: 3" (76.2x76.2mm)
3. Panel Size: 1.0 x 1.0 M
4. Diameter of Spring: 4.0mm, used for connecting and collapsible
5. Geotextile: UV Protection Geotextile, the weight is abou 300
g/㎡( Standard)
6. Color: Military Green
7. Total Size: 1.0 x 1.0 x 3.0 M
8. No. of Cells: 3 Cells
9. Finish: Hot Dipped Galvanized
10. Package: Packed in pallet, with Plastic Film or Shrink Film
The Standard Technical Specifications from SX 1 to SX 19
| Welded Military Gabion Box for Retaning Wall |
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
Other Application for Military Defensive Barriers:
1. Perimeter Security Barrier and Defence Wall
It can connected into a whole use Joint Pin to form a Perimeter
Security Barrier and Defence Wall.
2. Temporary Fort and Command Post
Because of Defensive Barriers can divide into many small cells, can
change the direction esaily to form a rectangular Temporary Fort
and Command Post.
3. Observation Points and Border Checkpoints
It can also stacked together to form Observation Points and Border
Checkpoints.
4. Flood Prevention Barrier
Filled with sand or earth to standard against the Water to
protection.
The Advantages of Welded Defensive Barrier:
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured
from Galvanised coated, welded mesh. The mesh must be made of rust
protected alloy materials.The Wire Mesh must have a guaranteed life
of not less than 5 years while exposed to environment and 10 years
when in store.

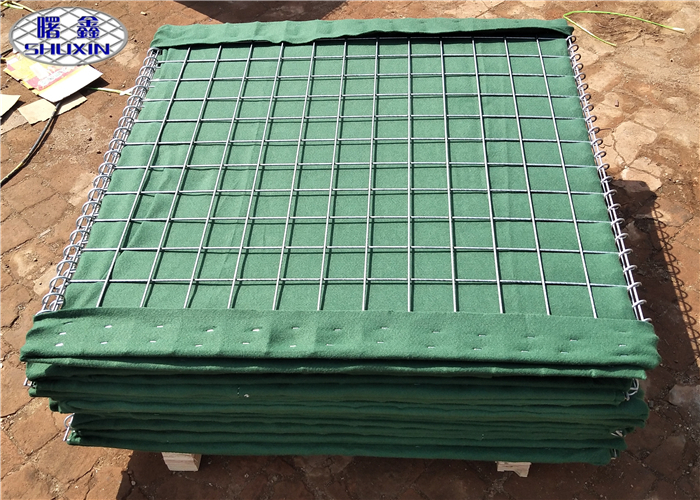

2. Collapsible
Mesh Panel is joint by spring which is a circle, Mesh Panle can
turn 360° unobstructed, so, when shiping the goods, it is
collapsible to save space.
3. Strong Protection
Thickner Mesh Panle together with thickner geotextile combined a
strong Protection wall.
