Galvanized Durable Defensive Bastion Barriers Wall For Effective
Protection in Afghansitan
Military Defensive Bastion Barriers Wall is manufactured from low carbon steel wire with high tensile
strength,it is an electric fusion welded prefabricated joined grid
consisting of a series of parallel longitudinal wires with accurate
spacing welded to cross wires at the required spacing .It is
electrically welded together then hot dipped galvanized or PVC
coated, ensuring a longer life.
Brief Introduction for Military Gabion Box Fortress:
Material: Galvanized steel wire or Galfan / zinc-5%aluminum wire
Service Life: 15-20 years
Wire diameter: 3.0mm- 6.0mm
Aperture: 3" (76.2mm × 76.2mm ) Standard
Color of geotextile: Grey and Military, Beige, Sand Color and so
on.
Weight of Geotextile: 250 g/m2 or 300 g/m2
Finish:hot dipped galvanized,Galfan wire.
Welded method:welded after galvanized or galvanized after welded
The Standard Technical Specifications from MIL 1 to MIL 19
| Welded Military Gabion Basket Wall |
| Model | Height | Width | Length |
| MIL-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| MIL-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| MIL-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| MIL-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| MIL-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| MIL-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| MIL-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| MIL-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| MIL-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| MIL-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| MIL-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| MIL-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| MIL-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |

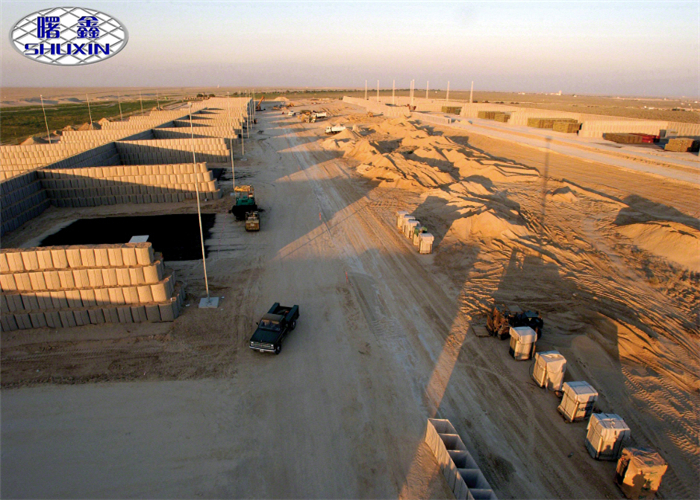

The Application for Defensive Barrier Bastion Wall:
Flood Control
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure,
SHUXIN products provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Military Gabion Box can as the Dike against the Flood permanently
or Semi-Permanently.
3. Flood Control Retaining Wall
Wiht sand and earth in it, Welded Gabion Box can as a retaining
Wall to against the flood.
4. Protection Engineering of Seaside Area
Military Defensive Barrier is more and more homemade at the seaside
area as Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
The Advantages of Welded Gabion Basket Wall:
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured
from Galvanised coated, welded mesh. The mesh must be made of rust
protected alloy materials.The Wire Mesh must have a guaranteed life
of not less than 5 years while exposed to environment and 10 years
when in store.
2. Collapsible
Mesh Panel is joint by spring which is a circle, Mesh Panle can
turn 360° unobstructed, so, when shiping the goods, it is
collapsible to save space.
3. Strong Protection
Thickner Mesh Panle together with thickner geotextile combined a
strong Protection wall.
4. Fast and Simple Operation
A security wall using earth-filled barrier box can be filled by two
persons and a standard front-end loader in just 20 minutes, the
equivalent sized wall of 1,500 sandbags will take 10 persons up to
7 hours to fill and build.
