    Galfan Coated Welded Gabion Baskets Geotextile Lined Construction Wall

    Ask Lasest Price
    Brand Name : SHUXIN
    Model Number : SX-1 to SX-19
    Certification : CE, ISO, SGS, SASO, PVOC,COC, FM A, FM E
    Price : Negotiated
    Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal, T/A
    Supply Ability : 500 Units per week
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Galfan Coated Welded Gabion Baskets Geotextile Lined Construction Wall

    Galfan Coated Welded Gabion Baskets Geotextile Lined Construction Wall

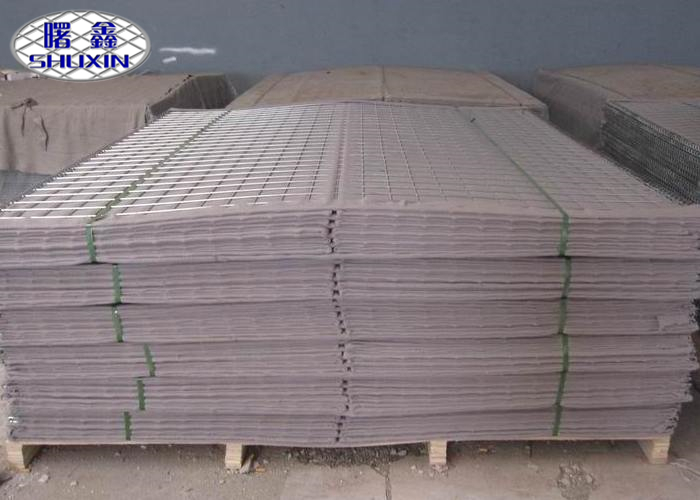

    Shuxin Defensive Barrier unit is made of welded mesh panels which are connected with spring wire. The First time put into use is in 1991, the First Gulf War, as the Military bunker for protection Wall.


    The Specification of SX-6:


    UNITHEIGHTWIDTHLENGTHCELL CONDITION

    SX-6

    (Beige)

    5'6"

    (1.68 M)

    2'

    (0.61 M)

    10'

    (3.05 M)

    5 CELLS

    SX-6

    (Green)

    5'6"

    (1.68 M)

    2'

    (0.61 M)

    10'

    (3.05 M)

    5 CELLS

    The Technical Specifications from SX-1 to SX-19


    Welded Military Welded Bastion Wall
    ModelHeightWidthLength
    SX-154"(1.37M)42"(1.06M)32'9"(10M)
    SX-224"(0.61M)24"(0.61M)4'(1.22M)
    SX-339"(1.00M)39"(1.00M)32'9"(10M)
    SX-439"(1.00M)60"(1.52M)32'9"(10M)
    SX-524"(0.61M)24"(0.61M)10'(3.05M)
    SX-666"(1.68M_24"(0.61M)10'(3.05M)
    SX-787"(2.21M)84"(2.13M)91'(27.74M)
    SX-854"(1.37M)48"(1.22M)32'9"(10M)
    SX-939"(1.00M)30"(0.76M)30'(9.14M)
    SX-1087"(2.21M)60"(1.52M)100'(32.50M)
    SX-1148"(1.22M)12"(0.30M)4'(1.22M)
    SX-1284"(2.13M)42"(1.06M)108'(33M)
    SX-19108"(2.74M)42"(1.06M)10'5"(3.18M)

    The Application for Welded Defensive Barriers:


    1. Military Fortifications

    Most Army Used Welded Gabion Barrier build up a Military Fortifications, Because it can stack on each other, You can change the width and height by your demands. More easy and flexible.


    2. Flood Control


    We Mentioned above, The Gabion Box Barrier is more and more popular and Homemade. Most Countries Near the coastline choose the Militay Defensive Barrier as Flood Protection Wall.Even around the hotel they stand up the Military Gabion Barrier for Protection Wall.


    The Advantages of Welded Defensive Barrier:


    1. Quick Displacements


    When you want to use it in another place,Just to move it, It can use many times


    2. Easy to repair


    If some part is destroyed, Just left it and connect the new one is okay.
