SX-12 Army Using Defensive Barrier Fence Hot dipped Galvanized
after welding
SX-12 Defensive Barriers is a prefabricated, multi-cellular system, made of zinc coated
steel welded mesh and lined with non-woven geotextile. Units can be
extended and joined using the provided joining pins.It is easy
installed with using minimal manpower and commonly available
equipment. After extended,it is filled into sand,stone,then Welded
Gabion Box like a defence wall or bunker,it is widely use in
military to protect safety.
The Specification of SX-12:
| UNIT | HEIGHT | WIDTH | LENGTH | CELL CONDITION |
SX-12 (Beige) | 7' (2.13 M) | 3'6" (1.06 M) | 108' (33.00 M) | 5+5+5+5+5+5 CELLS |
SX-12 (Green) | 7' (2.13 M) | 3'6" (1.06 M) | 108' (33.00 M) | 5+5+5+5+5+5 CELLS |
The Technical Specifications from SX-1 to SX-19
| Welded Military Welded Defensive Bastion Wall |
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
The Application for Welded Defensive Barriers:
1. Flood Control
Rapid Layout the Defensive Barrier according Seacoast Line, filled
sand or earth into it, with it continuous Lengh, can prevent the
flood. Same method, can also used belong the river, front of house,
to prevent the water get into the house.
2. Shooting Range
A shooting range, firing range or gun range is a specialized
facility designed for firearms qualifications, training or
practice.Shooting ranges can be indoor or outdoor, Defensive
Barrier mianly used as outdoor shooting range.
3. Perimeter Security
Denfesive Barriers can connected together use special joint pin,
the length is not limited, they can connected in to a circle to
protect something also form a long wall to prevent sand and storm.
The Advantages of Welded Defensive Barrier:
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured
from Galvanised coated, welded mesh. The mesh must be made of rust
protected alloy materials.The Wire Mesh must have a guaranteed life
of not less than 5 years while exposed to environment and 10 years
when in store.

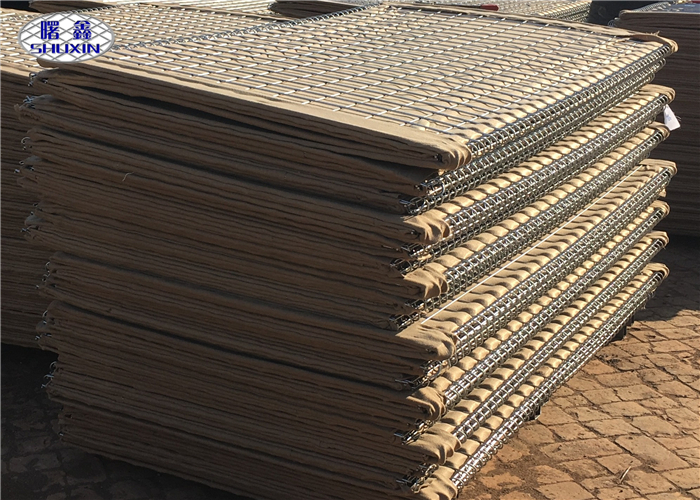

2. Collapsible
Mesh Panel is joint by spring which is a circle, Mesh Panle can
turn 360° unobstructed, so, when shiping the goods, it is
collapsible to save space.
3. Quick Displacements
When you want to use it in another place,Just to move it, It can
use many times
4. Easy to repair
As a protection Wall to prevent Bullets and shells, there would be small part damage, Just use one
piece of welded wire mesh panel insert into the earth and cover the
damage part, it can also work long time.
