3"x3" Mesh Gabion Box Military Defensive Bastion Barriers For Security Barrier
Defensive Bastion Barriers Details:

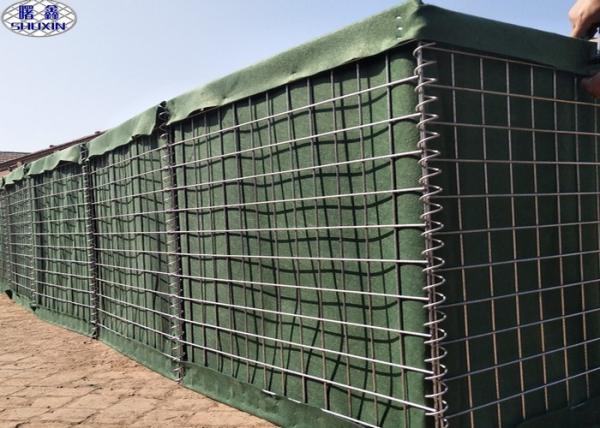

The Defensive Bastion Barriers is a modern gabion primarily used for flood control and
militaryfortifications. It is made of a collapsible wire mesh
container and heavy duty fabric liner, and used as a temporary to
semi-permanent levee or blast wall against explosions or
small-arms. It has seen considerable use in Iraq and Afghanistan.
Assembling the Defensive Bastion Barriers entails unfolding it and filling it with sand, soil or gravel,
usually using a front end loader. The placement of the barrier is
generally very similar to the placement of a sandbag barrier or
earth berm except that room must generally be allowed for the
equipment used to fill the barrier. The main advantage of Defensive Bastion Barriers , strongly contributing to their popularity with troops and flood
fighters, is the quick and easy setup. Previously, people had to
fill sandbags, a slow undertaking, with one worker filling about 20
sandbags per hour. Workers using barriers and a front end loader
can do ten times the work of those using sandbags
Defensive Bastion Barriers Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Defensive Bastion Barriers Application
1. Environmental Barriers,Flood Barriers, a reliable,
easy-to-deploy and robust solution for emergency flood protection
or long-term wetland restoration
2. Defensive Barriers: Protecting both military and civilian
personnel in dangerous environments demands defensive solutions
that are secure, reliable and readily available.
3. Protective Barriers: Protect your workforce,Create a secure
refuge for your employees by
providing protection for up to eight people with Accommodation
Bunker.
4. Rockface: transforms the highly effective wall into an
aesthetically pleasing structure ideal for customer-facing
perimeter security where a more benign appearance is required.
