Collapsible Defensive Bastion Barriers Wall Galvanized Craft COC Certification

Ask Lasest Price
Brand Name :	SHUXIN
Model Number :	Defensive Bastion Barriers
Certification :	CE ISO SGS COC
Price :	Negotiated
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	500 unit per week
Delivery Time :	10 working days

Add to Cart

Product Details
Company Profile

Collapsible Defensive Bastion Barriers Wall Galvanized Craft COC Certification

Military Collapsible Galvanized Defensive Bastion Barriers Wall For Protection

Defensive Bastion Barriers Details:

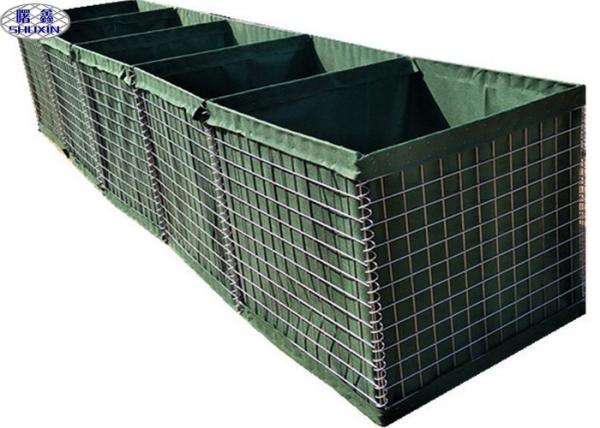

Defensive Bastion Barriers is a prefabricated, multi-cellular system, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins.It is easy installed with using minimal manpower and commonly available equipment.After extended,it is filled into sand,stone,then barrier like a defence wall or bunker,it is widely use in military to protect safety.

Quick View of Defensive Bastion Barriers :

Material : Low-carbon steel wire
Wire Diameter : 4-5.0mm
Spring Diameter : 4.0-4.5mm
Mesh Hole : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size : 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
Geotextile : In heavy duty non-woven polypropylene.
Finish : Hot Dipped Galvanized after /before welding, Galfan Coated before welding

Defensive Bastion Barriers Specification

Model	Height	Width	Length	Internal Cells
SX-1	54”(1.37m)	42”(1.06m)	32’9”(10m)	5+4=9 cells
SX-2	24”(0.61m)	24”(0.61m)	4’(1.22m)	2 cells
SX-3	39”(1.0m)	39”(1.0m)	32’9”(10m)	5+5=10 cells
SX-4	39”(1.0m)	60”(1.52m)	32’9”(10m)	5+5=10 cells
SX-5	24”(0.61m)	24”(0.61m)	10’(3.05m)	5 cells
SX-6	66”(1.68m)	24”(0.61m)	10’(3.05m)	5 cells
SX-7	87”(2.21m)	84”(2.13m)	91’(27.74m)	5+4+4=13 cells
SX-8	54”(1.37m)	48”(1.22m)	32’9”(10m)	5+4=9 cells
SX-9	39”(1.0m)	30”(0.76m)	30’(9.14m)	6+6=12 cells
SX-10	87”(2.21m)	60”(1.52m)	100’(30.5m)	5+5+5+5=20 cells
SX-11	48”(1.22m)	12”(0.30m)	4’(1.22m)	2 cells
SX-12	84”(2.13m)	42”(1.06m)	108’(33m)	5+5+5+5+5+5=30 cells
SX-19	108”(2.74m)	42”(1.06m)	10’5”(3.18m)	6 cells

Defensive Bastion Barriers Application :

1. Military Defense

Perimeter Security Barrier and Defence Wall
Temporary Fort and Command Post
Observation Points and Border Checkpoints
Military Barrier Fortification System
Equipment Revetment
Explosives and Contraband Search Areas
Guard Posts
Personnel and Material Bunkers

2. Flood Control

Flood Prevention Barrier
Permanent or Semi-permanent Dike
Flood Control Retaining Wall
Protection Engineering of Seaside Area

Protecting Existing Structures
Coastal Erosion Control
