Self Defense Shooting Range Hesco Defensive Barrier For Military
Product Description
1. A new system of defensive Hesco barrier developed specially for military use is deployed from a container,
which is dragged along the line of ground where the barrier is to
be formed, unfolding up to several hundred metres of barrier ready
for filling within minutes
Defence Hesco barrier is a prefabricated, multi-cellular system, made of steel welded
mesh – which is a folding and collapsible system – and lined with
nonwoven polypropylene geotextile. Units can be extended and joined
using the provided joining pins and filled with available material
using minimal manpower and commonly available equipment
2. Finish:
Electro galvanized, hot dipped galvanized, galfan coated, PVC
coated.
Specification
1) Material : Steel wire, galvanized wire
2) Wire Diameter: 4.0mm 5.0mm
3) Spring Diameter: 4.0mm
4) Mesh Opening: 50*50mm, 75*75mm, 76.2*76.2mm, 50*100mm, 100*100mm,
ect
5) Panel Size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be
produced as requested
6) Geotextile color: White, Sand color, Military Green
| Defensive Hesco Barrier |
| SX-1 | 1.37m* 1.06m*10.0m |  |
| SX-2 | 0.61m* 0.61m*1.22m |
| SX-3 | 1.0m*1.0m*10.0m |
| SX-4 | 1.0m*1.5m*10.0m |
| SX-5 | 0.61m* 0.61m*3.05m |
| SX-6 | 0.61m* 0.61m*6.10m |
| SX-7 | 2.21m*2.13m*8.52m |
| SX-8 | 1.37m*1.22m*10.0m |
| SX-9 | 1.0m*0.76m*9.14m |
| SX-10 | 2.13m*1.52m*7.62m |
Features
1. A pre-fabricated gabion of galvanised welded-mesh steel fitted
with a UV-protected Polypropylene geo-textile liner.
2. Filling material is an easily-obtained mix of sand and small
stones.
3. Can be connected together to any length, and can be stacked for
additional height.
4. Primary military use is as force protection against blast and
projectiles.
5. One of the best features of the defensive barrier is the ease in
which it is set up. Get it flown in or pull it off a truck, unfold
it, use a front end loader or other heavy equipment to fill it up
with dirt, sand or gravel.
Applications

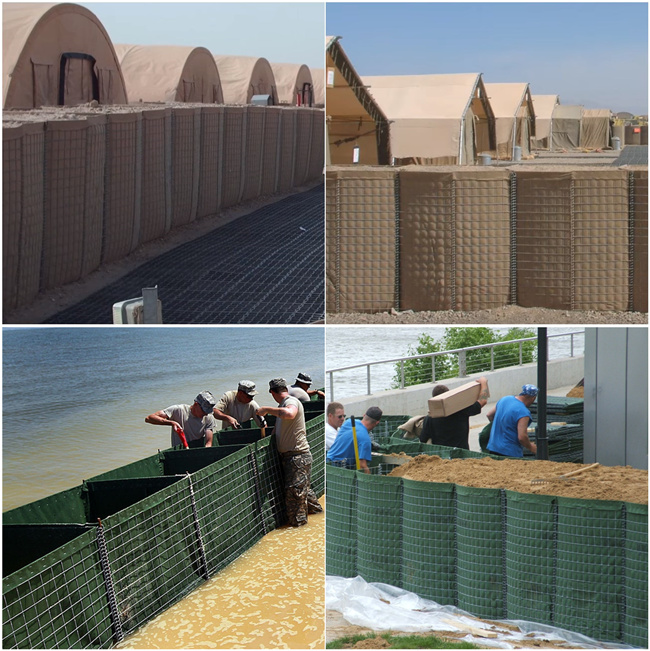

Whether used as a preventative barrier or to define boundaries, denfensive hesco barriers have been employed to safeguard personnel, vehicles, equipment,
facilities and critical assets in a variety of military,
peacekeeping, humanitarian and civilian operations.
Advantage
One of the best features of the defensive hesco barrier is the ease in which it is set up. Get it flown in or pull it off
a truck, unfold it, use a front end loader or other heavy equipment
to fill it up with dirt, sand or gravel.
