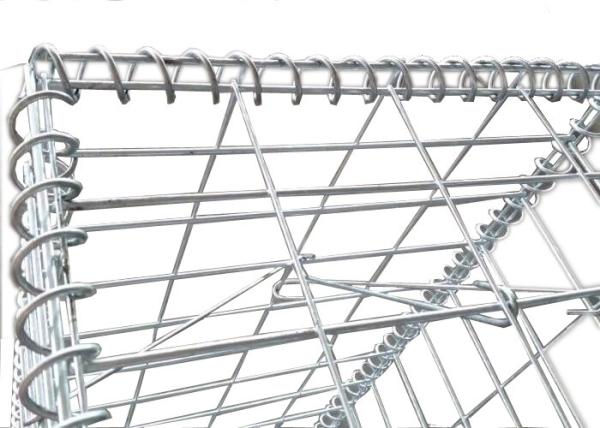

50 x 100mm Galvanized Welded Mesh Gabion / Welded Stone Cage Wall
Welded Gabion Box are wire container made of Welded wire mesh
panel.Gabions are engineered retaining structures designed as mass
gravity walls to hold back earth or other solid materials with out
overturning, sliding or foundation failure. All designed, gabion
walls should be checked by a suitably qualified structural engineer
on site prior to construction. The modular structure of these walls
allows for variation in section to be accommodated as the height
increases. The inherent strength of the units ensures structural
and dimensional stability whilst a degree of flexibility
accommodates ground movement and settlement where necessary.
The welded gabion basket details:
A) Panel: high quality galvanized panel of 50*50 or 75*75 mesh size
B) Sprial wires: good quality for same wire diameter as panel
C) Stifferens :4-8 stifferens per gabion, to make sure the gabion
is more strong
| Type of welded Gabion | Wire Gauge Diameter | Mesh Size | Gabion Size |
| Galvanized | 3-5mm | 50X50,75X75,50X100 | 2*1*1, 1*1*1,1*1*0.5,etc |
| PVC Coated | 3.0/3.8mm | 50X50,75X75,50X100 | 2*1*1, 1*1*1,2*1*0.5,etc |
| 95% Zinc + 5% Al | 3-5mm | 50X100,75X75,100X100 | 1*1*0.5,2*1*1,1*1*0.3etc |
The welded gabion basket connection details
1. U -clips
2. C-ring
3. Lacing wire connection
4. Hook connection
The sprial wires & hooks or stiffeners is most popular as it's more
strong for usage
Welded gabion basket advantage:
1. Economic. Just fill the stone into the gabions and seal it.
2. Simple installation. No special technology needed.
3. Weather proof under natural destroy, corrosion resistant.
4. Sludge in the stones is good for plant growing. Mixed to form a
integrity with thenatural environment.
5. Good permeation can prevent the damage by hydrostatic.
6. Less transport freight. It can be folded together for transport
and further installation.
7. No collapse even under big scope of deforming.
