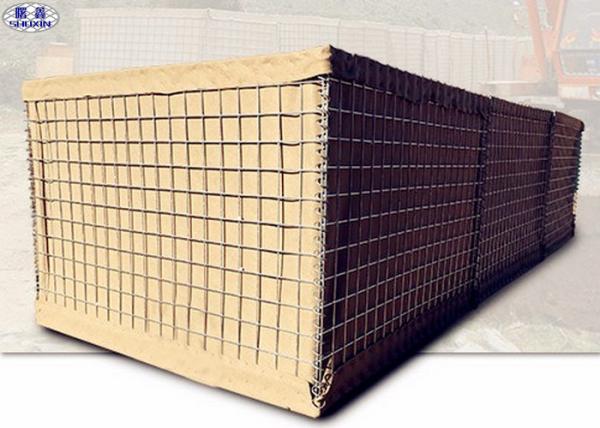

Military Anti Blast Defensive Military Sand Wall For Protection Wall
Description of Military Barriers :
mil 7
Overall size H*W*L: 2.21m x 2.13m x 27.74m
Defense Barriers (DB) Units consisting of 5+4+4 Cells connected
together. Each cell of DB measuring 2.21m high, 2.13m wide and
27.74m length after installed and each Unit compromises 4 or 5
Cells together to form a structure 2.21m high 2.13m wide and 27.74m
length .
Geotextile Color
The unit should be either Olive green or Tan Brown in colour .
HESCO barrier Lifetime:
The unit must be made of a Wire Mesh basket which is manufactured
from galvanised coated, welded mesh. The mesh must be made of rust
protected alloy materials.The Wire Mesh must have a guaranteed life
of not less than 5 years while exposed to environment and 10 years
when in store .
Wire diameter and mesh opening
The diameter of the wire used for the mesh must not be less than
4mm and each square in the mesh should be around 7cm x
7cm.(76.2*76.2mm)
Geotextile Cloth:
The mesh framed cell must have a cloth lining emplaced on the inner
sides of the wall frame. The cloth lining allows the cell to retain
a filling material such as sand or gravel or earth. The liner
textile should be of heavy duty non-woven geotextile with a high UV
resistance and fire inhibitor.The top textile cloth lining must be
secured with rust protected staple material in at least two layers
and bottom layer must also be secured with at least one layer of
staple material .
Linking system
The linking materials e.g Joining pin, Hog ring, coil ring etc.
must be made of same high tensile rust protected alloy materials of
wire mesh.Linking system of DB should be flexible enough so that DB
can be easily placed on any curved section of DB construction site
.
HESCO barrier Specifications:
| MODEL | Height | Width | Length | NO. of Cells |
| SX-1 | 4'6"(1.37M) | 3'6"(1.06M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-2 | 7'(2.1M) | 3'6"(1.06M) | 108'(33M) | 30 cells(6*5) |
| SX-3 | 2'(0.61M) | 2'(0.61M) | 4'(1.21M) | 2 cells |
| SX-4 | 3'3"(1.0M) | 3'3"(1.0M) | 32'(10M) | 10 cells(2*5) |
| SX-5 | 2'(0.61M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-6 | 5'6"(1.68M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-7 | 7'3"(2.21M) | 7'(2.13M) | 90'(27.74M) | 13 cells(2*4,1*5) |
| SX-8 | 4'6"(1.37M) | 4'(1.22M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-9 | 3'3"(1.0M) | 2'6"(0.76M) | 30'(9.14M) | 12 cells(2*6) |
| SX-10 | 7'(2.12M) | 5'(1.52M) | 95'(30.5M) | 20 cells(4*5) |
| SX-11 | 3'3"(1.0M | 3'3"(1.0M) | 3'3"(1.0M) | 1 Cell |
| SX-12 | 7'3"(2.21M) | 7'3"(2.21M) | 7'3"(2.21M) | 1 Cell |
Military Barriers Features :
Military Sand Wall can be built to any required length and to any height. The unique
joining system allows the user great flexibility in configurations
and requirements. One of the key advantages of the system is that
any readily available infill material can be utilised. Sand,
rubble, rocks, soil, concrete and even snow have been successfully
used.
Rapid construction is another key feature of the product. A typical
wall of units equivalent to approximately 1500 sandbags, can be
erected and filled by two men and a single common loader in less
than twenty minutes. An equivalent wall constructed of sandbags
would take 10 men 7 hours to build.
Military Barriers Application:
1. Flood Control.
Most of People used the Barrier as the bulwark all over the river,
unfold it and filled with sand or earth, instad of sandbags, it is
easy to operate and efficacious.
2. Military Defence
Most of army used Barrier for protection, because the bullet can
not penetrate it easily, it can prevent explosion, and not easy to
destroied.
3. Hotel Pretection
A lot of Superior Hotel used Barrier as the protection wall
outside, safety, and beautiful.
