System Gabion Retaining Walls And Bridge Abutments Gabion Basket
Box
Product Description
Gabion Basket Box structures are strong and reliable offering engineers many benefits
for managing earth and water.
Typically Gabion Basket Boxes are preferred on large scale civil, mining, industrial, road and
rail projects.
Gabion Basket Boxes structures are able to develop and integrate with the surrounding
environment, permitting the preservation or restoration of the
natural landscape.
Specification
1. Gabion box mesh materials: Hot dipped galvanized, galfan coated
and PVC coated gabion box
2. Gabion box mesh wire: 2.0mm, 2.4mm, 2.7mm, 3.2mm, 3.4mm, 4mm
3. Gabion box mesh selvedge wire diameter: 2.4mm, 2.7mm, 3mm, 3.4mm,
4mm
4. Gabion box mesh Tie wire/lacing wire: 2.2mm, 3%, 5%, 8% of weight
5. Gabion box mesh hole: 6*8cm(mesh type6), 8*10cm(mesh type8),
10*12cm(mesh type10), 12*15cm(mesh type12)
6. Gabion box mesh Zinc coating: 220-290G/M2
7. Gabion box mesh size: 2x1x1m, 2x1x0.5m, 6x2x0.3m, as your request
8. Gabion box mesh with diaphragms
Feature
1. High versatility: Gabion Wall Cages can be stacked to create a retaining wall with
vertical, sloping or stepped front face based on the requirements
of your project. Meanwhile, woven gabion baskets can be mounted
combining various plants for enhanced strength and more pleasing
appearance.
2. Long lifespan: All of our Gabion Wall Cages are heavily galvanized, Zn-Al alloy
plated with optional PVC coating to resistant against corrosion and
maximum their lifespan. Normally, our galfan gabion and PVC gabion
can last up to 120 years based on different exposure conditions.
3. Robust and flexible structure: woven gabion baskets have robust and flexible structure which
enable them to prevent unraveling effectively and withstand forced
from water and earth masses.
Advantages
| 1. Robust and flexible structure. |  |
| 2. Excellent permeability. |
| 3. Good corrosion and rust resistance. |
| 4. High tensile strength. |
| 5. Good durability and long lifespan. |
Application
Gabion wall cages are widely used on the project sites after filling it with natural
stones. They act as a flexible and permeable structures such as
Retaining walls, sea walls, channel lining and wires for erosion
control projects.
Hexagonal wire netting with its good corrosion resistance and
oxidation resistance, serves well as strengthening, protection and
temperature keeping materials in the form of mesh container, stone
cage, isolation wall, boiler cover or poultry fence in
construction, chemical, breeding, garden and food processing

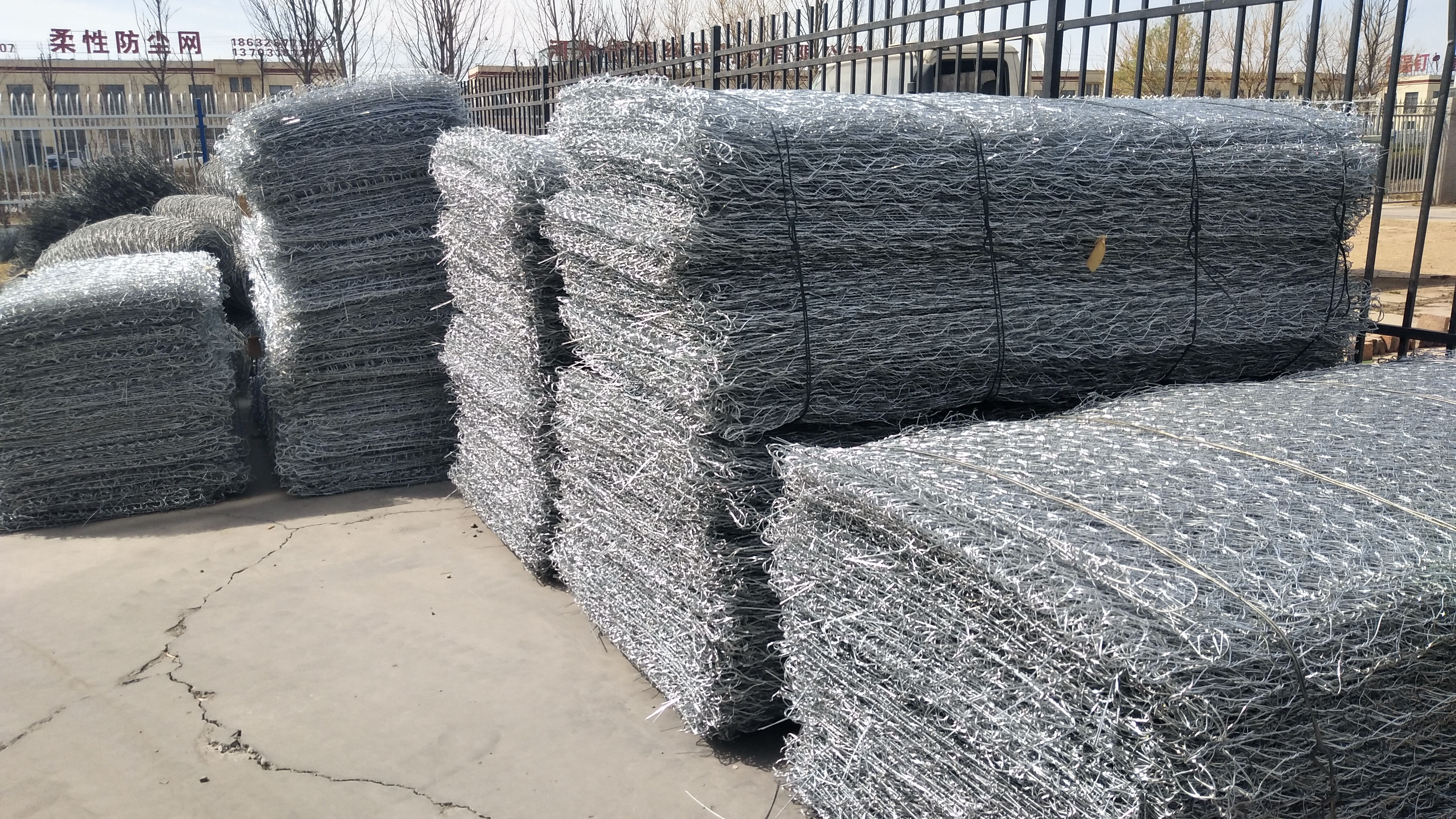

Packing
1.nude package
2.Several pieces of gabions to a pallet,pallets put into
containers.
3.70pieces to a bundle, 24-26Tons to a 40HQ
shipping:
within 20days/3*40ft containers
