Galfan Coated Retaining Wall Gabion Baskets 8x10cm Mesh Hole Stone Cage


Hex Gabion Wire Mesh Gabion Baskets Stone Boxes is Woven by Machine used Low carbon Steel Wire, which is High corrosion resistance, high strength,and ductile. This kind of Gabion Wire Mesh also can make into Cage called Gabion Mesh Box Cage.According to ASTM and EN Standard, The Wire Diameter can be 2.0mm-4.0mm, The T/S not less than 38 kg/M2. The Zinc Coating is Higher than 245 g/M2. The Edge Wire Diameter is thicker than Wire Mesh Diameter, The Length of Twist part is not less than 50mm, to protect Zinc Coating or PVC Coating.

Gabion Material

. Hot DIP galvanized wire / Heavy zinc-coated wire

. PVC coated wire

. Galfan wire

Gabion Details

Mesh Type: Double twisted hexagonal

Mesh size: 6x8cm, 8x10cm, 10x12cm etc.

Gabion size: Can be design as per the clients' requirement.

(The normal size: 1.5x1x1m, 2x1x1m, 3x1x1m, 2x1x0.5m, 4x1x1m, )

Gabion basket application:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area

Specification Sheet of Hex Gabion Wire Mesh Gabion Baskets Stone Boxes :

Advantages:

• Economy, Just put the stone into the cage is okay to use.
• It is simple to Operation, No need special skills.
• Strong ability to resist the effects of natural damage, corrosion and weather.
• It will not collapse with a wide range of deformation
• It is good to Growing for Plant between the gap of Stone,together with the Environmental.
• Has good permeability to prevent damage caused by hydrostatic forces. Conducive to the stability of the slopes and shore beaches
• It is foldable to save space and shipping cost, Assemble easily on the Construction Site.
• Corrosion resistance: galvanized materials are not afraid of sea water.

The packing:

woven bags of the above and bottom,high quality package or as customers requested In roll ,water proof paper in side and our side with weave bag;carton;wooden case;pallet. according to customers requirement.

The Shipping:

Production time :15-20 days after received your payments Transportation way : by see or by air Port: XinGang TianJin or as your order

Shuxin Company

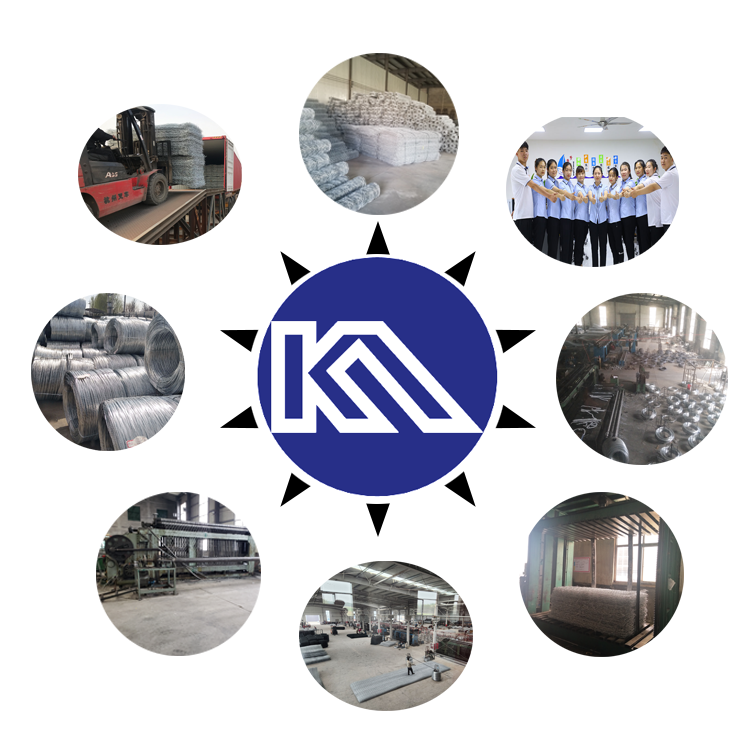

We have been producing gabion nets for 15 years, our factory had been verified onsite by world leading inspection company SGS GROUP and we have stricter requirements for the entire production management system, and we have passed ISO inspection systems.This is our workshop, we have 7 machines with a daily output of 5000 square meters,

Galvanized wire and PVC wire in the raw material area can be produced according to your requirements.

Hebei KN Wire Mesh Co., Ltd, was established in 2013, is a professional manufacturer engaged in the research, development, production, sale and service of Defensive barrier, Welded Gabion Box, Wave Gabion Basket , Gabion Mattress. We are located in Anping county hengshui city with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including welded wire mesh machine,Cutting Machine,Bending machine,air pump,Punching machine. We have strong technical strength,scientific management and complete inspection means to guarantee iron wire products of high grade .We will with the most preferential price,best quality in the face of the customer. In addition, we have obtained ISO EU CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Britain, France, Germany, USA,UK Kenya, Zambia, Philippines,Thailand,Korea,New Guinea,Greece, Mexico. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Our company always insist on the quality strives for the survival, to the credibility of development the objective, wholeheartedly for the domestic and foreign customers, with quality products and first-class service. and foreign customers, with quality products and first-class service.
