Iron Wire Mesh Gabion Basket Box Square Meter Gabion Cage Prices
Introduction of Gabion basket:
Gabion is a rectangular basket made of galvanized double stranded
wire mesh. Baskets constructed from individual units are assembled,
bundled together, and then filled with stones to form an integral
structure.

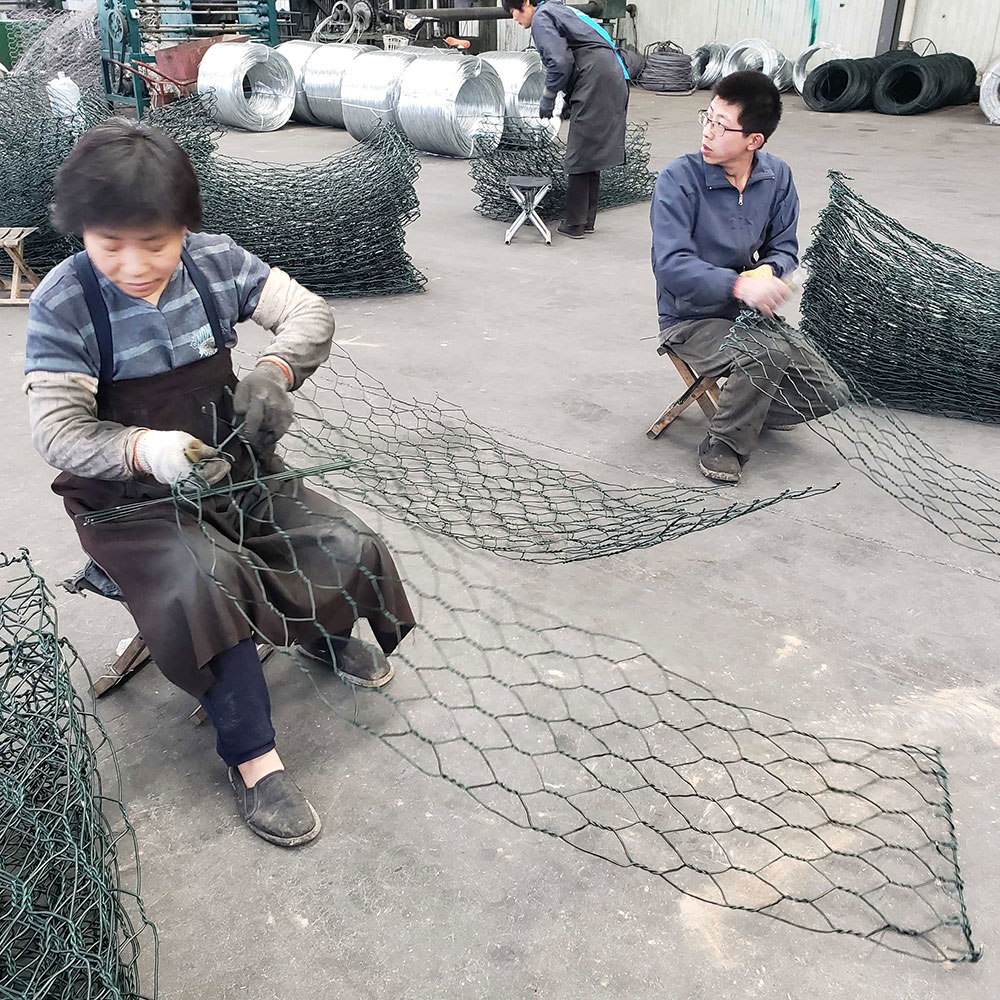

Gabion basket is made of twisted hexagonal woven mesh. The metal
wire used to make gabion baskets is made of soft tensile heavy
galvanized steel, and PVC coating can also be used for additional
corrosion protection when the application requires. The double
twisting of the woven wire mesh provides structural integrity,
strength and continuity by increasing the non-loosening effect of
preventing any accidental damage from spreading. Fastening wires
are used to assemble and interconnect empty units and to close and
fix stone filling units. Once assembled, the basket will be filled
with stones at the scene.
| Material | Galvanized low carbon steel wire |
| Weave Type | Three-twist weave |
| Wire diameter | Mesh wire:2.0mm-4.0mm |
Selvedge wire:3.4mm, 3.8mm |
| Lacing wire:2.2mm, 2.5mm |
| Mesh size | 60*80mm, 80*100mm, 90*110mm, 100*120mm |
| Hole Shape | Hexagonal |
| Gabion size | 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 6*2*0.3m |
| Surface treatment | HD galvanized, PVC coated |
| Color | Green,Sliver |
| Characteristics | Easy to install, rust prevention, corrosion prevention, low cost,
high safety and less goods to be transported. |
| Usage | Water or flood control and guidance, prevention of rock breakage,
coastal area protection projects, road protection.river gabion
protection project |
| Packaging | Packed in bundles or pallets or according to customer's
requirements. |
Application of gabion baskets:
Retaining wall
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
Characteristics of gabion basket:
1). Flexible structure to adapt to changes in the slope without
being destroyed, better than the rigid structure with the security
and stability;
2). Anti-erosion ability, able to withstand the maximum flow rate
of up to 6m / s .
3). This structure has essentially permeability, groundwater and
the filtering effect of the natural role of a strong inclusive,
suspended matter and silt in the water to move in to fill the
crevice in precipitation, which is conducive to the growth of
natural plants, and gradually restore the original ecological
environment.
Installation Process:
1. Ends,diaphragms,front and back panels are placed upright on the
bottom section of wire mesh
2. Secure panels by screwing sprial binders through the mesh
openings in adjacent panels
3. Stiffeners shall be placed across the corners, at 300mm from the
corner. Providing a diagonal bracing,and crimped
4. Box gabion filled with graded stone by hand or with a shovel.
5. After filling,close the lid and secure with sprial binders at
the diaphragms,ends,front and back.
6. When stacking tiers of the weled gabion,the lid of the lower
tier may serve as base of the upper tier.Secure with sprial binders
and add pre-formed stiffeners to exterior cells before filling with
graded stones.
