Standard Galvanized Hexagonal Gabion Basket Box for Flood Control
Retaining Wall
High versatility: Gabion Wall Cages can be stacked to create a retaining wall with
vertical, sloping or stepped front face based on the requirements
of your project. Meanwhile, woven gabion baskets can be mounted
combining various plants for enhanced strength and more pleasing
appearance.
Long lifespan: All of our Gabion Wall Cages are heavily galvanized, Zn-Al alloy
plated with optional PVC coating to resistant against corrosion and
maximum their lifespan. Normally, our galfan gabion and PVC gabion
can last up to 120 years based on different exposure conditions.
Robust and flexible structure: woven gabion baskets have robust and flexible structure which
enable them to prevent unraveling effectively and withstand forced
from water and earth masses.
Material: Galvanized wire, Galfan wire,PVC coated wire,
Wire Gauge: 2.7mm, 2-4mm
Hole Size: 60x80mm, 80x100mm, 100x120mm
Gabion Size:
1.5x1x1,2x1x0.5,2x1x1,3x1x0.5,3x1x1,4x1x0.5,4x1x1,5x1x1
Quick View of Gabions Woven Wire Mesh Box Retaining Walls :
| Product Name | Gabion Wire Mesh Box Cage |
| Material | Low Carbon Steel Wire, Q195,Q235 |
| Process | Weave By Machine |
| Usage | Slope support, foundation pit support |
| Features | High corrosion resistance, high strength, ductility |
| Tensile Strength | 38kg/m2 |
Production Process of Gabions Woven Wire Mesh Box Retaining Walls :
Raw Materials (Wire Rod) - Cold drawn / Galvanized / PVC Coated -
Machine Weaving - Artificial Shear, Assembly - Product Inspection -
Packaging and Transport
Specification Sheet of Gabions Woven Wire Mesh Box Retaining Walls :
| Wire Diameter | Mesh Hole | Size of Box Cage |
| 2.0mm-4.0mm | 60 * 80 mm | 2M * 1M * 1M 3M * 1M * 1M 4M * 1M * 1M 2M * 1M * 0.5M 4M * 1M * 0.5M |
| 80 * 100 mm |
| 80 * 120 mm |
| 100 *120 mm |
| 120 * 150mm |
| 90 * 110 mm |
| Surface Treatment: Galvanized, Hot Dipped Galvanized,Galfan Coated,
PVC Coated |
PS: People often use Hot Dipped Galvanized, Or Galfan Coated Gabion
Wire Mesh, The using life can be 20 years, it is more suitable.
Application:

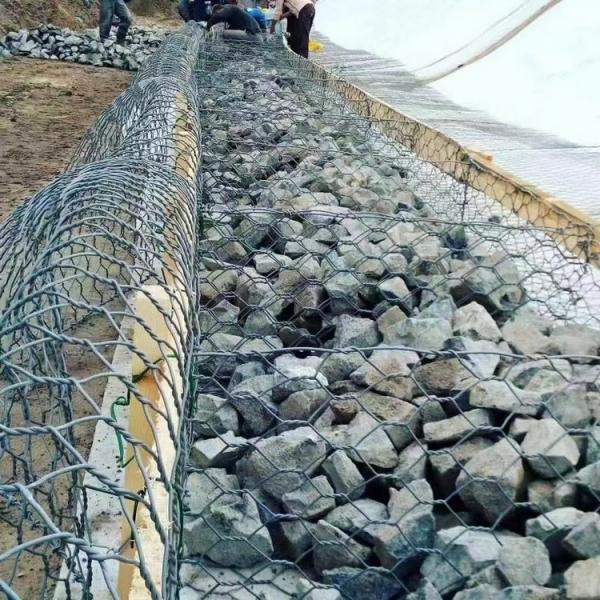

Foldable Stone Filled Woven Gabion Wire Mesh Mainly used for river, bank slope, road slope slope protection
structure. It can not only prevent riverbank from making water flow
and storm and wave, but also achieve the natural convection and
exchange function between water bodies and the soil beneath the
slope to achieve ecological balance.
Advantages:
- Economy, Just put the stone into the cage is okay to use.
- It is simple to Operation, No need special skills.
- Strong ability to resist the effects of natural damage, corrosion
and weather.
- It will not collapse with a wide range of deformation
- It is good to Growing for Plant between the gap of Stone,together
with the Environmental.
- Has good permeability to prevent damage caused by hydrostatic
forces. Conducive to the stability of the slopes and shore beaches
- It is foldable to save space and shipping cost, Assemble easily on
the Construction Site.
- Corrosion resistance: galvanized materials are not afraid of sea
water.
