3x3 Inch Hole Size Flood Control Collapsible 4mm Military Barrier
Military Gabion Barrier Bastion Sand Wall is a multi-cellular
barrier system lined with heavy-duty, non-woven polypropylene
geotextile and manufactured from welded Zinc-Aluminium coated steel
mesh.

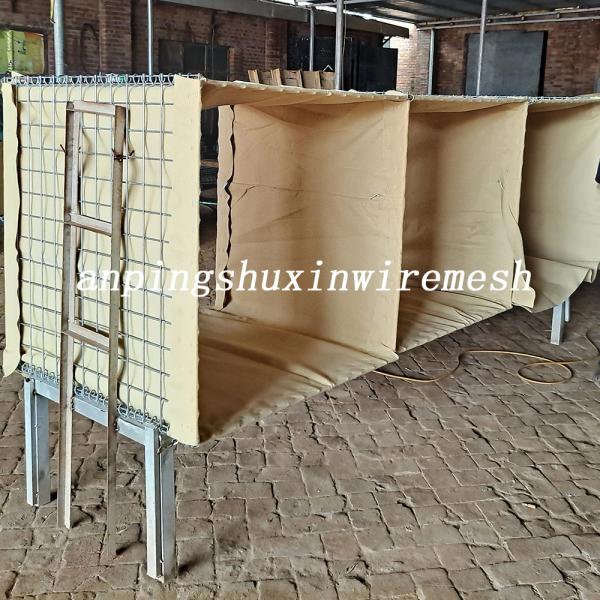

Known as a Military Gabion Barrier Bastion Sand Wall , it consists
of collapsible wire mesh frames, lined with heavy duty canvas or
other material. The boxes are then filled with dirt or sand ,
preferably with a front-end loader , to make a barrier resistant to
small arms fire and shrapnel.
Brief Introduction for Usage method:
1. Usually the HESCO Barriers packed in Pallet and 5 cells per
set,After getting it, make it stand.
2. To Pull them, make them opened and in a line to achieve the length
you want, If more cells use Joint Pin
3. Full Fill the sand and earth in it and compaction
4. If you want more High and Wide of it, You can stack the HESCO
Barrier on each other.
1. Galfan coated steel mesh frame
2. The integrated unit provides internal structural integrity.
3. Excellent strength and structural integrity
4. High tensile and impact resistance
5. Improve transportation efficiency and speed
Application:
1. Police force points and Check points
2. Military Defensive barriers
3. Observation points and border checkpoints
4. Military barrier fortification system
5. Border control and temporary accommodation bunkers
| Product Name | Hesco Barrier Bastion Welded Gabion Box Explosion-Proof Wall |
| Material | Hot-dipped Galvanized Steel Wire,Galfan Wire(Zinc-Aluminum Steel Wire) |
| Wire Diameter | 4mm,5mm |
| Spring Diameter | 4mm |
| Mesh Hole | 3’’*3’’ or 75mm*75mm |
| Panel Size | 0.61m*0.61m,1m*1m,1.06m*1.37m,2.21m*2.13m,etc. |
| Geotextile | Usually 300g/m,other requirement can be customized. |
| Finish | Hot-dipped Galvanized,Galfan Coated. |
The Size Sheet for Military HESCO Barrier:
| MODEL | Height | Width | Length | NO. of Cells |
| SX-1 | 4'6"(1.37M) | 3'6"(1.06M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-2 | 7'(2.1M) | 3'6"(1.06M) | 108'(33M) | 30 cells(6*5) |
| SX-3 | 2'(0.61M) | 2'(0.61M) | 4'(1.21M) | 2 cells |
| SX-4 | 3'3"(1.0M) | 3'3"(1.0M) | 32'(10M) | 10 cells(2*5) |
| SX-5 | 2'(0.61M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-6 | 5'6"(1.68M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-7 | 7'3"(2.21M) | 7'(2.13M) | 90'(27.74M) | 13 cells(2*4,1*5) |
| SX-8 | 4'6"(1.37M) | 4'(1.22M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-9 | 3'3"(1.0M) | 2'6"(0.76M) | 30'(9.14M) | 12 cells(2*6) |
| SX-10 | 7'(2.12M) | 5'(1.52M) | 95'(30.5M) | 20 cells(4*5) |
| SX-11 | 3'3"(1.0M | 3'3"(1.0M) | 3'3"(1.0M) | 1 Cell |
| SX-12 | 7'3"(2.21M) | 7'3"(2.21M) | 7'3"(2.21M) | 1 Cell |
How to Install hesco barrier?
1, Ends, diaphragms, front and back panels are placed upright on
the bottom section of wire mesh.
2, Secure panels by screwing spiral binders through the mesh
openings in adjacent panels.
3, Stiffeners shall be placed across the corners, at 300mm from the
corner. Providing a diagonal bracing, and crimped over the line and
cross wires on the front and side faces. None are needed in
interior cells.
4, Gabion box filled with graded stone by hand or with a shovel.
5, After filling, close the lid and secure with spiral binders at
the diaphragms, ends, front and back.
6, When stacking tiers of the welded gabion box, the lid of the
lower tier may serve as the base of the upper tier. Secure with
spiral binders and add pre-formed stiffeners to exterior cells
before filling with graded stones,
SHUXIN company had been produce welded wire mesh products hesco
barriers more than 15 years.
our products been supplied many countries's department of defense.
and army force.
such as UAE Jordan, USA,Greece,Saudi Aria, Dubai,Kenya ....
and our factory had been verified onsite by world-leading
inspection company SGS Group.
we have CE ISO certification. and we have confidence to become your
stable and believable supplier in China.
Welcome inquiry for us about hesco barriers.
