Heavy Duty Defensive Barriers Sandbags Mil10 Mil3 Hesco Barriers
For Shooting Range
The concertainer MIL units are lined with either beige or green
colored heavy-duty non-woven polypropylene geotextile.Hesco barrier
/hesco bastion can be filled with sand, earth, cement,stone, then
as a defence wall or bunker and widely used in the military to
protect safety.
Hesco barrier also named as Hesco bastion, Hesco defense wall, sand
cage, welded gabion box, etc. It is a prefabricated, multi-cellular
system, made of zinc coated steel welded mesh and lined with
non-woven geotextile. Units can be extended and joined using the
provided joining pins. It is easy installed with using minimal
manpower and commonly available equipment. After extended, it is
filled into sand,stone,then hesco barrier like a defence wall or
bunker,it is widely used for military fortification and flood
control.Accessories Supplied With Carrier Units.
Explosion-proof walls are also known as modern metal meshes for
flood protection and military fortifications. Composed of a
collapsible wire mesh container,and heavy geotextile, it is used as
a temporary or semi-permanent barrier or bastion to block an
explosion or small weapon attack. Nowadays, people called "HESCO
Barrier'. Anping Shuxin Wire Mesh involved in this area since 2007,
have own professional production team to meet customer's kinds of
requirements.

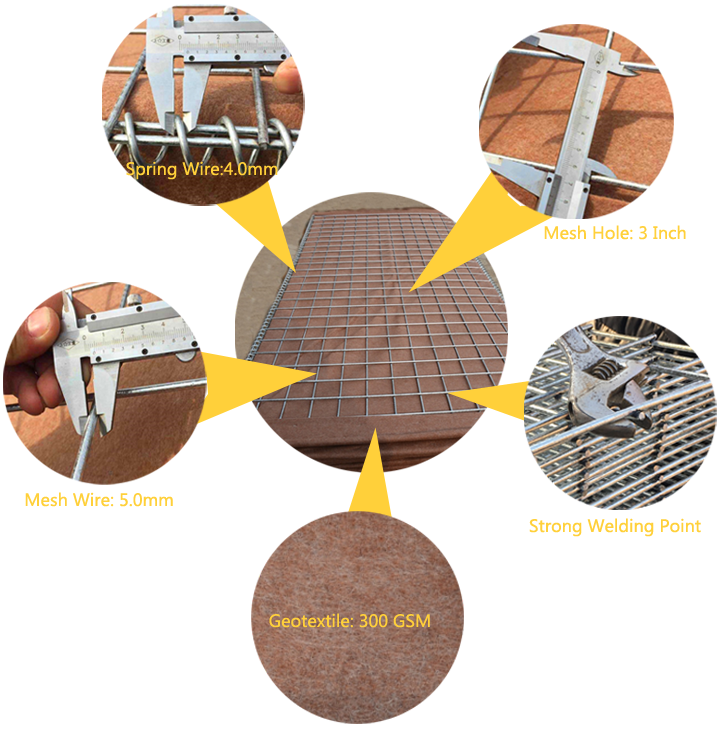

Gram Weight of geotextile:200g/m2 or 300g/m2
Finish:hot dipped galvanized,Galfan wire.
Welded method:welded after galvanized or galvanized after welded
Packing:Wrapped with shrink film then packed in wood pallet or iron
pallet
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Defensive Barrier Application :
1. landscaping, as retaining walls, landscape urban landscape and
parks.
2. or high salt pollution in the environment, Gore can be used
where welded wire mesh technology.
3. within the welded wire mesh filled with stone or natural
cobblestone highway together protection, slope, roadway, bridge and
so on.
4. welded wire mesh is widely used in earth or soil reinforcement
such as desertification, slope protection, river, coastal
protection, reservoirs, canals and pipelines renovation, Rock
failure protection, bridge protection, protective net.
