Welded Military Sand Gabion Box Wall Hesco Military Barrier Army
Protective
Introduction :

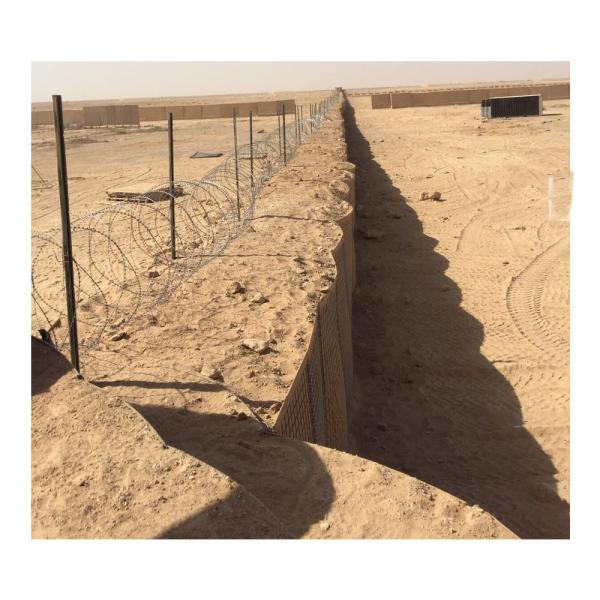

Military Sand Wall unit is a multi-cellular wall system manufactured from welded
Zinc-Aluminum coated /hot dipped galvanized steel wire mesh and
joined with vertical,helical coil joints.
The units are lined with either beige or green colored heavy-duty
non-woven polypropylene geotextile. can be filled with sand, earth,
cement,stone, then as a defence wall or bunker and widely used in
the military to protect safety.
Quick View of Military Sand Wall :
Material : Low-carbon steel wire
Wire Diameter : 4-5.0mm
Spring Diameter : 4.0-4.5mm
Mesh Size : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size : 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
Geotextile : In heavy duty non-woven polypropylene.
Finish : Hot Dipped Galvanized after /before welding, Galfan Coated before
welding
Military Sand Wall hesco barrier Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Military Sand Wall Features :
1.Galfan coated steel mesh frame
2. The integrated unit provides internal structural integrity.
3.Excellent strength and structural integrity
4.High tensile and impact resistance
5. Improve transportation efficiency and speed
Military Sand Wall can be built to any required length and to any height. The unique
joining system allows the user great flexibility in configurations
and requirements. One of the key advantages of the system is that
any readily available infill material can be utilised. Sand,
rubble, rocks, soil, concrete and even snow have been successfully
used.
Rapid construction is another key feature of the product. A typical
wall units equivalent to approximately 1500 sandbags, can be
erected and filled by two men and a single common loader in less
than twenty minutes. An equivalent wall constructed of sandbags
would take 10 men 7 hours to build.
The Detailed Explanation of Application for Barrier:
1. Military Fortifications
Most Army Used Barrier build up a Military Fortifications, Because
it can stack on each other, You can change the width and height by
your demands. More easy and flexible.
2. Shooting Range
Nowadays, A lot of people use Barrier to build a shooting range,
because its High Strength Defense, more safety.
3. Flood Control
We Mentioned above, The Barrier is more and more popular and
Homemade. Most Countries Near the coastline choose the Barrier as
Flood Protection Wall.Even around the hotel they stand up the
Barrier for Protection Wall.
