Geotextile Sand-Filled Bunker HESCO Defensive Barrier, Welded
Military Fortification Fortress Barrier Wall
Product Description:
Wire diameter: 4mm, 5mm
Mesh size: 50mmx50mm, 75mmx75mm,76.2mmx76.2mm,100mmx100mm
Panel size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, it also can be customized
according to customers requirement
Geotextile: in heavy duty non-woven polypropylene
Finish: hot dipped galvanized, galfan coated after welded
Packing: wrapped with shrink film or packed in pallet.
1.Geotextile Introduction
Hot dip galvanized gabion boxes with geotextile are also called
fortresses, protective walls, sand cages, welded gabion boxes, etc.
This is a multi-cellular system made of galvanized welded mesh and
lined with non-woven fabric. The provided connection extension and
connection unit may be used. It is easy to install and requires
minimal manpower and commonly available equipment. After expansion,
it is filled with sand and stones, and then welded with gabion
barriers like defense walls or bunkers. It is widely used for
military defense and flood control.
2. Working principle:
It is made of galvanized welded mesh plate, spring belt and other
accessories, which can be filled with sand, soil, cement and stone,
and can be used alone or connected by some defense barriers.
3. Quality assurance:
Our factory has been verified on site by SGS Group, the world's
leading inspection company. Our products strictly follow ISO9001,
SGS and CE certification. Our products comply with BS EN
10244-2:2009 and BS EN 1208-2:2012
| Geotextile Sand-Filled Bunker HESCO Defensive Barrier |
| PRODUCT | HEIGHT | WIDTH | LENGTH |
| MIL1 5442 R | 54''(1.37M) | 42''(1.06M) | 32'9''(10M) |
| MIL2 2424 R | 24'' (0.61M) | 24''(0.61M) | 4'(1.22M) |
| MIL3 3939 R | 39''(1.00M) | 39''(1.00M) | 32'.9''(10M) |
| MIL4 3960 R | 39''(1.00M) | 60''(1.52M) | 32'.9''(10M) |
| MIL5 2424 R | 24''(0.61M) | 24''(0.61M) | 10'(3.05M) |
| MIL6 6624 R | 66''(1.68M) | 24''(0.61M) | 10'(3.05M) |
| MIL7 8784 R | 87''(2.21M) | 84''(2.13M) | 91'(27.74M) |
| MIL8 5448 R | 54''(1.37M) | 48''(1.22M) | 32'.9''(10M) |
| MIL9 3930 R | 39''(1.00M) | 30''(0.76M) | 30''(9.14M) |
| MIL10 8760 R | 87''(2.21M) | 60''(1.52M) | 100'(32.50M) |
| MIL11 4812 R | 48''(1.22M) | 12''(0.30M) | 4'(1.22M) |
| MIL12 8442 R | 84''(2.13M) | 42''(1.06M) | 108'(33M) |
Application
- Perimeter security and defence walls
- Equipment revetments
- explosive and contraband search areas
- Ammunition compounds
- Personnel and material bunkers
- Observation points
- Defensive firing positions
- Highway checkpoints
- Border crossing checkpoints
- Protection existing structures
- High way traffic management
- Flood control
- Water courses
- Emergency flood deployment
- Erosion control
- Retaining walls
1. Military fortifications Most armies use defense barriers to
build military fortifications because they can be stacked on top of
each other. You can change the width and height according to your
requirements. More simple and flexible.
2. Shooting range Nowadays, many people use defense barriers to
build shooting ranges because of its high defense strength and
safety.
3. Flood control Defense barriers are becoming more and more
popular and easy to assemble, and good permeability. Most countries
near coastlines choose defense barriers as flood prevention walls.
Even around the hotel, they erected protective walls.
Advantages :
Secure & reliable
Once filled with soil, sand or gravel, forms a solid and strong
barrier with exceptional strength and structural integrity to
protect personnel and equipment from enemy fire. For example:
Two feet thick barriers can be used to stop rifle bullets and shell
fragments.
Four feet thick barriers can prevent most car bombs.
Five feet thick barriers is ideal for preventing penetration and
explosion fragments from rocket propelled grenade.
Convenient usage
HESCO bastion barrier can be used in separate cell or some cells
joined together by joint pins to suit different needs of your
projects. Almost any locally filling material can be used such as
soil, sand, gravel, crushed rock and various other granular
materials.
Labor saving design

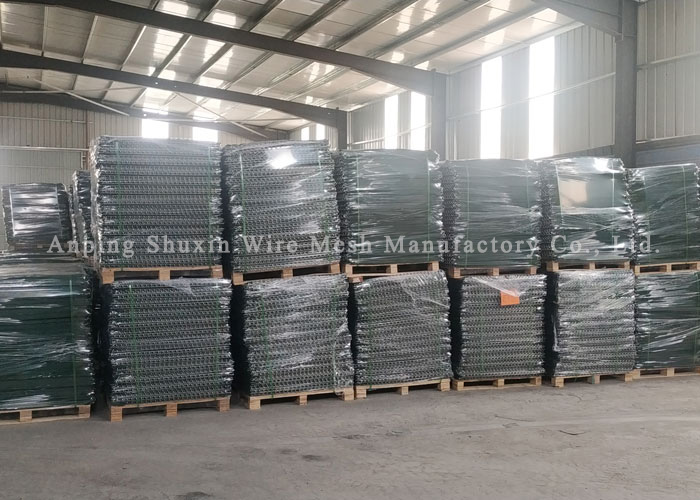

Can be collapsed and stacked on pallets for easy package, handling
and transport, so that it efficiently saves labor cost.
Quick & easy assembly
Provides the easiest deploy methods - just unfold it and fill it
using minimal manpower or commonly available equipment. Previously,
sandbag barrier is considered a slow undertaking as a person can
only fill about 20 sandbags per hour. Yet our KNSCO do ten times
the work.
Fetures:
Easy to handle and install
High strength and impact resistance
Long service life and normal use
Can be filled with sand, cement, stone, soil.
