Standard Galvanized BWG16 Double Strand Barbed Wire Fence With
Handle
Product Description
Barbed wire, also known as bob wire, is the most important
component of barbed wire fence system.
It can be used individually to form the barbed wire fence, and it
also can be attached onto various fences, such as chain link fence,
welded wire mesh fence, expanded mesh fence or palisade fence for
high level security barrier. With the features of sharp edge, high
tensile strength and corrosion, rust resistance, they are widely
used for prison fencing, airport fencing, farm fencing, ranch
fencing, residence fencing, large construction site fencing and so
on .
Barbed Wire twisting Style:
Single strand barbed wire
Double strand traditional twibarbed wire
Double strand reverse twist barbed wire
PVC coated barbed wire
Specification
| Barbed wire type | Barbed wire gauge | Barb diatance | Barb lenght |
| Electro galvanized barbed wire; Hot-dip zinc planting barbed wire | 10# x 12# | 7.5-15cm | 1.5-3cm |
| 12# x 12# |
| 12# x 14# |
| 14# x 14# |
| 14# x 16# |
| 16# x 16# |
| 16# x 18# |
| PVC coated barbed wire;PE barbed wire | Before coating | After coating | 7.5-15cm | 1.5-3cm |
|
| 1.0mm-3.5mm | 1.4mm-4.0mm |
| BWG 11#-20# | BWG 8#-17# |
| SWG 11#-20# | SWG 8#-17#
|
Barbed wire is twisted wires armed with barbs or sharp points.
Double twist barbed wire consists of two wire strands together with
four point barbs, placed at predetermined distance. Normally, the
standard barbs distance are 3inch,4inch,5inch. Single twist barbed
wire use high or low carbon wire as main wire with either two or

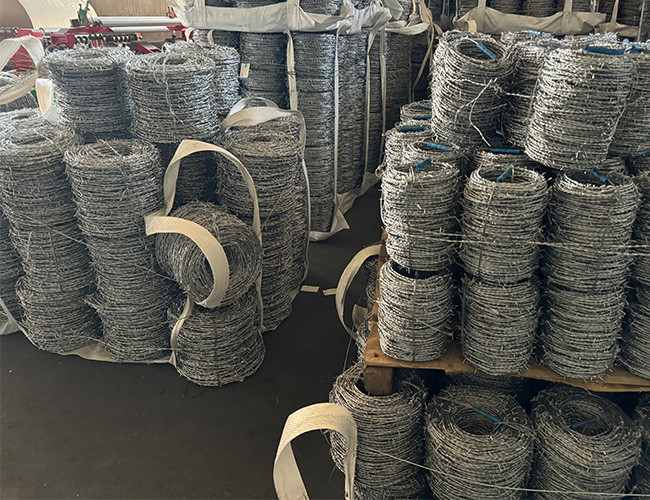

four point barbs. Barbed wire produce with roll packing. In order
to protect hands during load and unload, it is also usually
installed with handle.
We supply both double twist barbed wire and single twist barbed
wire with high quality. Barbed wire is common fence material. It’s
not only used individually to barbed wire fence but also can be
attached onto various fence mesh, such as Chain link fence, welded
wire mesh panel. Barbed wire is used chiefly for fencing in
livestock, keeping out trespassers. It is suitable for agriculture,
animal boundary, military and prison protection, and security
applications.
Features: Low cost, non-climb,
Materials: Electro-galvanized wire, Hot-dipped galvanized wire, PVC
Coated galvanized wire
Applications: Farm fencing, Airport fencing, Building fence etc.
