China gabion box factory price 2x1x1m 3x1x1m 4x1x1m 5x1x1m galvanized gabion basket
SHUXIN company is one of leading manufacturer of Gabion basket in our local, 21 set gabion machines, daily output 80,000 square meters.
Rich production experience,can provide high quality products for
multi-national government projects in different country.
Export more than 15 years, good reputation and very competitive
prices.
Quote in 10 minutes, welcome inquiry us now.

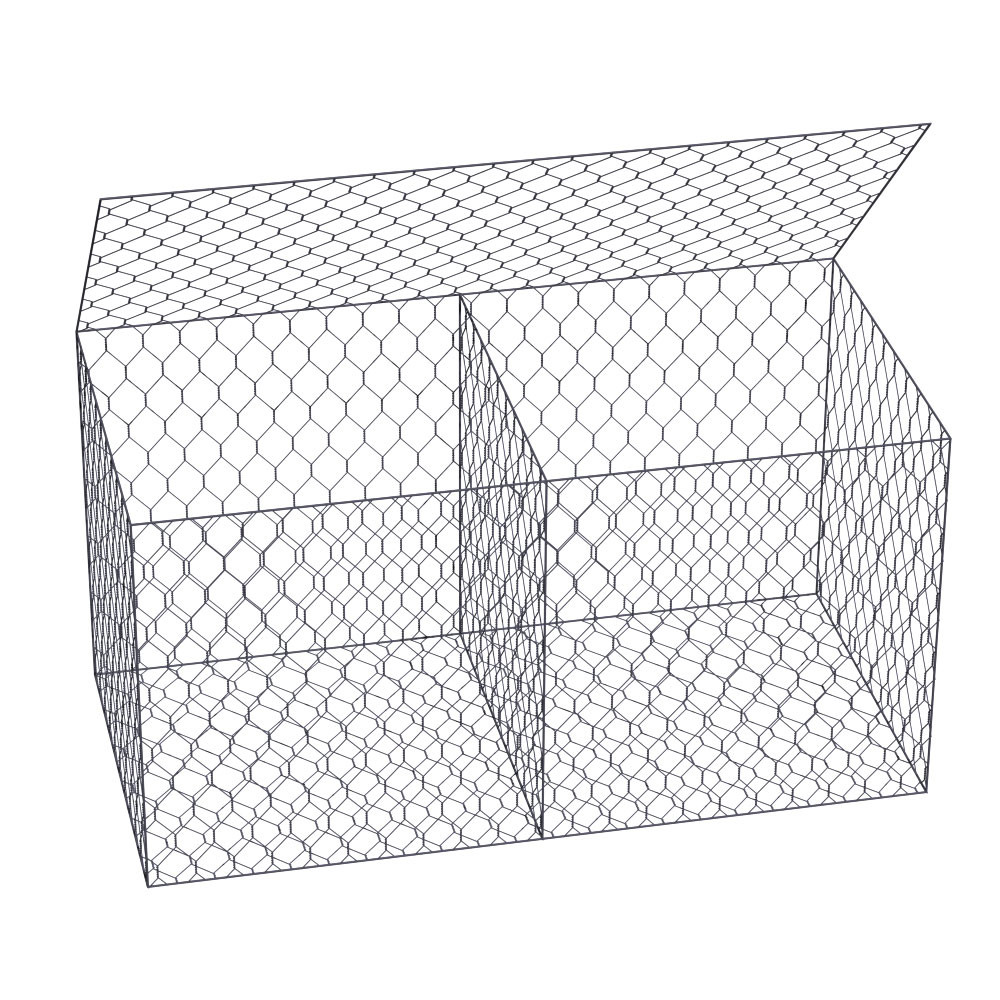

Gabion Basket Box Wall | ||
Material | pvc coated wire, galvanized coated wire, Zinc-Aluminum coated wire | ![]() |
Surface treatment | Hot dipped galvanized coated, PVC coated | |
Wire Diameter | 2.7mm 3.0mm body wire, hexagonal, double twist. | |
Selvedge Wire | 3.4mm 3.8mm | |
Woven Mesh Opening | Hexagonal Wire Pattern 60*80mm, 80*100mm,100*120mm, ect | |
Size | 1*1*1m,2*1*1m, 4*1*1m, other size can be produced as requested | |
Colour | grey color , Green color, |
Gabion Basket Specification list | ||||||||
Mesh Size (mm) | Number of Diaphragm | Approx Dimentions and Volumes | Tolerance | Color | Wire Diameter (mm) | |||
Length (m) | Width (m) | Height (m) | Capacity (m³) | |||||
60×80 mm 80×100 mm 90×110 mm 100×120mm 120×150mm 110×130mm | 1 | 2.00 | 1.00 | 0.30 | 0.60 | Length±5% Width±5% Height±5% | Blue Red Green Grey Black | 2.0 -4.0 mm |
1 | 2.00 | 1.00 | 0.50 | 1.00 | ||||
1 | 2.00 | 1.00 | 1.00 | 2.00 | ||||
2 | 3.00 | 1.00 | 0.30 | 0.90 | ||||
2 | 3.00 | 1.00 | 0.50 | 1.50 | ||||
2 | 3.00 | 1.00 | 1.00 | 3.00 | ||||
3 | 4.00 | 1.00 | 0.30 | 1.20 | ||||
3 | 4.00 | 1.00 | 0.5 | 2.00 | ||||
3 | 4.00 | 1.00 | 1.00 | 4.00 | ||||
1 | 2.00 | 0.50 | 0.50 | 0.50 | ||||
2 | 3.00 | 0.50 | 0.50 | 0.75 |
Gabion Basket Application:
Control and guide rivers and floods | Flood discharge dam and diversion dam |
Rockfall protection | Preventing water adnd soil erosion |
Bridge protection | Soild Soil structure |
Coastline Defence | Retaining Wall, Road Protection |
Marine and Seawall Protection | Earth Control and Soil Conservation |
Lining of Canals and Dams | Retaining Structures |
Groynes at the River | Landscaping |
Gabion Basket Advantages
Features of gabion baskets / gabion box / gabion mesh
1. Great Perviousness, pliability and anti-corrosion. 2. Resist the
scour
3. Holistic capability 4. Easy to Construct 5. Economical and
environmental protection
(1) It is convenient to use, and can be used only by tiling the net surface into wall surfaces and building cement;
(2) the construction is simple and does not need special technology;
(3) Strong ability to resist natural damage, corrosion and adverse weather effects;
(4) can withstand large-scale deformation without collapsing. It plays a role in fixing heat preservation and heat insulation.
(5) The excellent technological foundation ensures the uniformity of coating thickness and has stronger corrosion resistance;
(6) Save transportation costs. It can be shrunk into small rolls and wrapped in moisture-proof paper, occupying little space.
Gabion Basket Packing and Loading
Packaging Details: 100 pieces per bundle,fasten with iron strands.
our near sea Port: Xingang Port ,Tianjin,China
After the production of gabion net cage is completed, in order to save volume, compression packaging can be bundled.
![]() |
