Brand Name : | SHUXIN |
Model Number : | SX-HESCO-06 |
Certification : | COC、ISO、PVOC |
Price : | Negotiated |
Payment Terms : | L/C, T/T, Western Union, MoneyGram |
Supply Ability : | 120 sets per week |
Delivery Time : | 8-15 Working Days |
Green and Earthy Hesco Barriers Hesco Bastion Welded Gabion Box for Sale
A wall that has the ability to resist explosion shock wave and can limit the destructive effect of explosion to a certain range. Compared with reinforced concrete explosion-proof wall, it has the advantages of light weight, easy loading and unloading, recyclability and reuse.
Spic. of Hot Sale Welding Heavy Galvanized Military Defensive HESCO Barriers:
Height | Width | Length | Internal Cells |
54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
Specification:
Wire Diameter: 4mm, 5mm
Mesh Size: 50mmx50mm, 76.2mmx76.2mm,100mmx100mm
Panel Size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, It Also Can Be
Customized According To Customers Requirement
Mesh gabion is also known as gabion barrier, gabion concertainer. It is made of steel welded mesh, spring coil, non-woven geotextile with other fittings to make a simple and strong multi-cellular system.
The finish of barrier is in pre galvanized,galfan coated,hot dipped
galvanized to anti corrosion for long lifespan. The barrier is easy
to move and install, so it is widely used in military defensive
blast wall, flood control, erosion control, security fence barrier
and garden decoration.

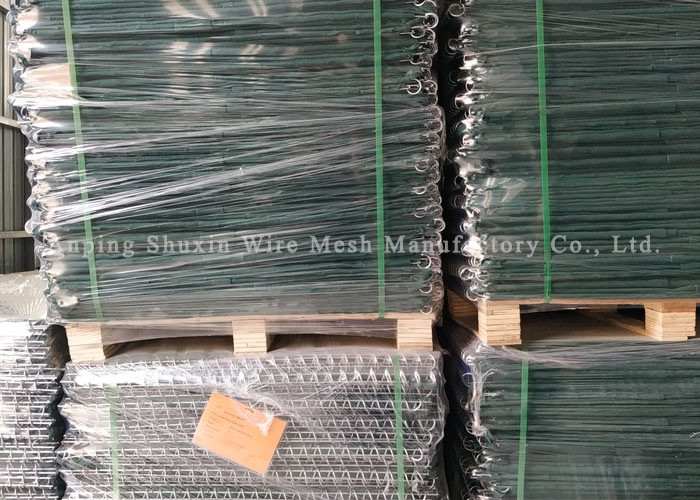

Packing:
∗Wrapped with shrink film then on pallet
∗Bulk load
∗Customized packing is available.
![]() |
