Obstacle Tanks Hidden Inconspicuous Galvanized tank barrier mesh
Product Overview:
Tank net is a type of metal wire mesh designed specifically for
defending tanks. Anti tank net is a special defensive structure
mainly composed of high-strength, corrosion-resistant iron wire,
which can physically prevent or delay the movement and attack of
tanks, effectively slowing down the pushing speed of tanks, and
even stopping them completely, providing valuable counterattack
time for the defenders. Anti tank wire mesh is mainly divided into
two forms: first, it is 10 meters long, 4 meters wide, and 40
centimeters high, suitable for laying on the ground or in grass;
second, it is composed of 10-20 circles stacked in a cylindrical
shape, with stronger stability and protection ability.
Low visibility, inconspicuous obstacles installed on the groundWith
a machine woven into a loop, when it opens, it covers theground,
preventing people from entering the closed facility andstopping
intruders who are walking or driving from moving.When a person
tries to cross this area, they are confused, thereis no way out of
the chaos, and there is no outside assistance.When an armored
vehicle or tank passes by, the wire mesh spinsaround the wheel,
turning into a metal plate in the chassis, makingit impossible to
move and difficult to remove from the wheel.
Technical characteristics of an inconspicuous wire network| Arameter | Meaning |
| Unfolded dimensions | 10x10x1.4 m |
| Wire diameter / number of garlands | 0.9 mm / 20 pieces
0.8 mm / 20 pieces
0.6 mm / 20 pieces
0.5 mm / 20 pieces
twist - 0.8 mm |
| Folded dimensions | 1.2x0.6x0.8 m |
| Package weight without rings and peg | 24 kg |
| Complete set of the MZP package with rings and pegs | 40 pieces |
Measurements of the batch of MZP putanka| Length(m) | 0.98 | 0.2 |
| Width(m) | 0.68 | 0.4 |
| Height( m) | 0.75 | 0.4 |
| Volume,(m³) | 0.4998 | 0.032 |
Invisible Drone Net Fence Wire Obstacle Low Visibility Mesh Tank
Security Putanka Barrier Russia
Inconspicuous wire obstacle are intended to impede movement, hinder
the advance and maneuver of violators of the state border,provide
border units and reserves with favorable conditions for blocking
and detaining them, limit the action of animals and people on
signaling and control means.
inconspicuous obstacle Wire woven into rings into a garland. When
opened, it forms a ground covering of wire garlands, which prevents
people from entering the closed facility.
What happens when you hit an inconspicuous obstacle?
If a person tries to go through into the territory, he gets
confused in it. There is no way to get out of the confusion without
outside help. Therefore, the offender remains safely waiting for
the guard on the spot. When an armored vehicle or tank passes,the
vehicle wraps around the wheels and turns into a pile of metal on
the chassis, preventing it from moving further. And it’s difficult
to remove such a gift from the wheels.

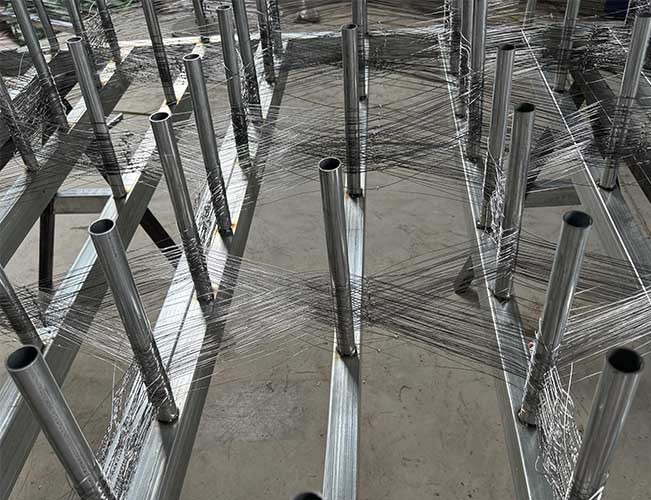

Process:
production processSecure the start of the 0.9 mm wire to one of the
tubes at the start of a row.Lay a row of ramps in the correct
direction, then return in the opposite direction following the
pattern of laying the ramps to close the row of ramps. Rewind the
start of the wire secured to the tube (secured by winding) onto the
last turn of the closed ramp. Do not cut the wire at the end of the
row! Each row is braided with a single wire along all 20 layers!
