Galvanized Hexagonal 2m Gabion Basket Woven Stone Filled

    Buy cheap Galvanized Hexagonal 2m Gabion Basket Woven Stone Filled from wholesalers

    Buy cheap Galvanized Hexagonal 2m Gabion Basket Woven Stone Filled from wholesalers
    • Buy cheap Galvanized Hexagonal 2m Gabion Basket Woven Stone Filled from wholesalers

    Galvanized Hexagonal 2m Gabion Basket Woven Stone Filled

    Ask Lasest Price
    Brand Name : SHUXIN
    Model Number : GABION
    Certification : CE SGS ISO COC
    Price : Negotiated
    Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P, D/A
    Supply Ability : 500 pc per day
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

    Galvanized Hexagonal 2m Gabion Basket Woven Stone Filled

    Galvanized Hexagonal Gabion Box Woven Stone Filled Gabion Basket


    Gabion box

    After being made into a box-shaped container, the net cage is filled with riprap and the like, which can be used for protecting and supporting seawalls, hillsides, roads and bridges, reservoirs and other civil engineering projects, and is a good material for flood control and flood fighting.hydraulic and coastal protection for river, sea and channel protection

    parameter:

    NameGabion Box
    Aperture80*100mm
    Wire size2.7 mm /3.4/2.2 mm
    Sureface treatmentgreen pvc coated

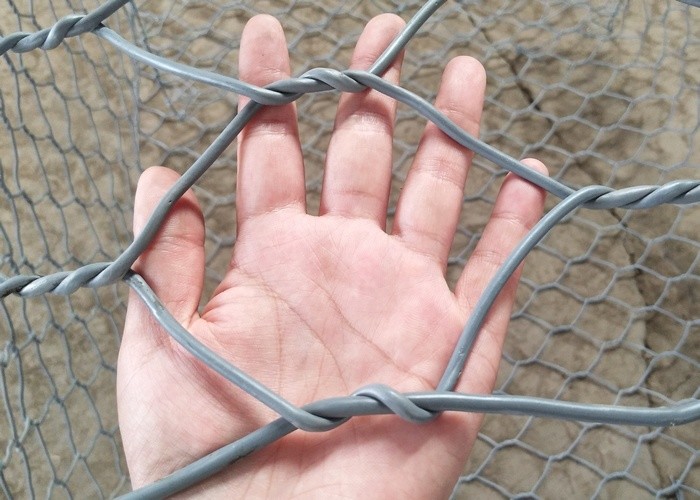

    Mesh Shapeweave hexagonal
    PackageWooden Pallet
    Gabion size1x1x1m,2x1x0.5m,2x1x1m,3x1x1m,3x1x0.5m,4x1x1m,4x1x0.5m,4x2x0.3m
    Gabion basket applicationcan be widely used in flood controling,retaining wall,river bank protection,slope protection etc.
    Meshhexagonal shape
    Wire Gauge2.0mm,3.0mm.3.5mm,3.8mm,4.0mm

    Gabion Box Specification
    Length*Width*Height2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m or Customized
    Mesh Size60*80; 80*100; 100*120 as standard, or customized
    Wire Diameter2.00mm to 4.0m or customized
    Surface FinishElectric Galvanized
    Hot Dipped Galvanized
    Galfan Coated
    PVC Coated
    WeavingDouble Twist
    PVC Coated Gabion Box Specification
    Opening
    (mm)
    Wire Diameter(Metal Wire) (mm)Wire Diameter (PVC Coate)/ Inner/Outside(mm)
    60X80φ2.0-2.8φ2.0/3.0-2.5/3.5
    80X100φ2.0-3.2φ2.0/3.0-2.8/3.8
    80X120φ2.0-3.2φ2.0/3.0-2.8/3.8
    100X120φ2.0-3.4φ2.0/3.0-2.8/3.8
    100X150φ2.0-3.4φ2.0/3.0-2.8/3.8
    120X150φ2.0-4.0φ2.0/3.0-3.0/4.0

    Feature


    1. High versatility: Gabion Wall Cages can be stacked to create a retaining wall with vertical, sloping or stepped front face based on the requirements of your project. Meanwhile, woven gabion baskets can be mounted combining various plants for enhanced strength and more pleasing appearance.


    2. Long lifespan: All of our Gabion Wall Cages are heavily galvanized, Zn-Al alloy plated with optional PVC coating to resistant against corrosion and maximum their lifespan. Normally, our galfan gabion and PVC gabion can last up to 120 years based on different exposure conditions.


    3. Robust and flexible structure: woven gabion baskets have robust and flexible structure which enable them to prevent unraveling effectively and withstand forced from water and earth masses.


    4. Good ductility, no structural joints.


    Galvanized Hexagonal 2m Gabion Basket Woven Stone FilledGalvanized Hexagonal 2m Gabion Basket Woven Stone Filled
