Iron Wire Mesh 1*1*1m Gabion Box Weave Galvanized Gabion Baskets Mattress For Bridge Protection

Gabion basket, also known as gabion box and gabion net, is a new type of ecological grid structure. It has been successfully applied to water conservancy projects, highways, railway projects and dike protection projects, and has well realized the organic combination of engineering structure and ecological environment. At the same time, compared with the traditional rigid structure, it has its own advantages and has become the preferred structural form for riverbed, landslide, debris flow, rockfall protection and environmental protection worldwide.

Multifunction: gabion wall retaining wall cages can be stacked according to your requirements to create retaining walls with vertical, inclined or stepped facades. Meanwhile, woven gabion baskets can be installed in combination with various plants to enhance strength and a more pleasant appearance.

Long life: all our gabion retaining wall cages are heavily galvanized, and zinc-aluminum alloy is plated with optional polyvinyl chloride coating to resist corrosion and maximize its service life. Generally, our galfan gabion and PVC gabion can be used for up to 12 years according to different exposure conditions.

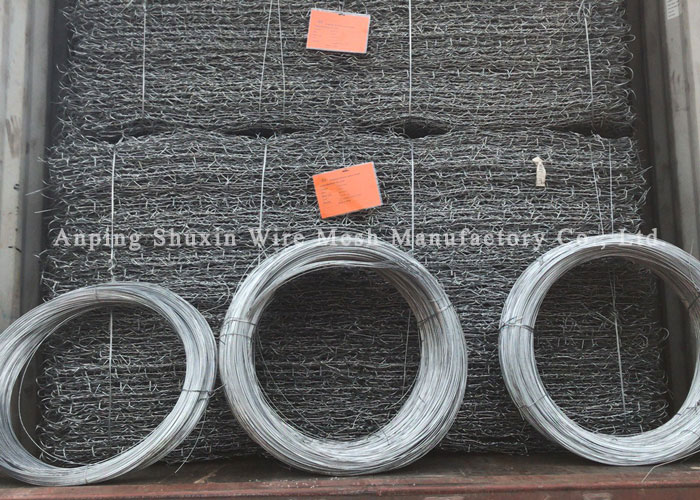

Gabion Cage Material :

1. hot-dip galvanized low carbon steel wire,
2. Zinc-5%Al or10%Al-mixed rare earth alloy coating, also named Galfan. lifetime 3times min than hot-dip galvanized gabion.
3. PVC coated , PVC coated on hot-dip galvanized steel wire and Galfan, many kinds of color
4. Tensile strength: 350-500Mpa,Elongation ≥12%,according to EN10223-3
5. zinc coating: mesh wire≥230g/M2,selvedge wire≥245g/M2,lacing wire ≥230g/M2

Gabion Cage Applications :
• Control and guide of water or flood
• Flood bank or guiding bank
• Prevention of rock breaking
• Water and soil protection
• Bridge protection
• Strengthening structure of soil
• Protection engineering of seaside area
• Seaport engineering
• Isolation walls
• Protection of road

Gabion Box Basket Characteristics:

(1) Economic. Just fill the stone into the gabion and seal it.

(2) Simple installation. No special technology needed.

(3) Weather proof under natural destroy, corrosion resistant.

(4) No collapse even under big scope of deforming.

(5) Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.

(6) Good permeation can prevent the damage by hydrostatics.

(7) Less transport freight. It can be folded together for transport and further installation.

Hebei KN Wire Mesh Co., Ltd, was established in 2013, is a professional manufacturer engaged in the research, development, production, sale and service of Defensive barrier, Welded Gabion Box, Wave Gabion Basket , Gabion Mattress. We are located in Anping county hengshui city with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including welded wire mesh machine,Cutting Machine,Bending machine,air pump,Punching machine. We have strong technical strength,scientific management and complete inspection means to guarantee iron wire products of high grade .We will with the most preferential price,best quality in the face of the customer. In addition, we have obtained ISO EU CE certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Britain, France, Germany, USA,UK Kenya, Zambia, Philippines,Thailand,Korea,New Guinea,Greece, Mexico. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Our company always insist on the quality strives for the survival, to the credibility of development the objective, wholeheartedly for the domestic and foreign customers, with quality products and first-class service. and foreign customers, with quality products and first-class service.
