    100x120mm 2x1x1 3.05mm Pvc Coated Gabion Baskets 270 Gsm Zinc Coated

    Ask Lasest Price
    Brand Name : SHUXIN
    Model Number : SX-gabion basket
    Certification : CE, SGS
    Price : negotiated
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 10000 square meter per week
    Delivery Time : 5-7days
    • Product Details
    • Company Profile

    100x120mm 2x1x1 3.05mm Pvc Coated Gabion Baskets 270 Gsm Zinc Coated

    100x120mm 2x1x1 3.05mm Gabion Baskets Pvc Coated Galfan 270 gsm Zinc Coated Wire Mesh Gabion Box


    7 days Fast Delivery,

    Gabion Mesh Manufacturer, Your reliable Project Partner.

    Factory Price,Reliable Quality, Create Excellent Gabion Project!


    Gabion Basket

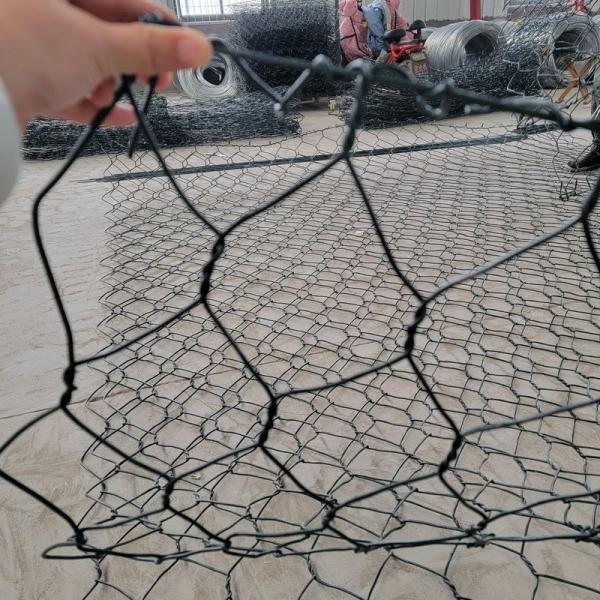

    Gabion Baskets are one kinds of Hexagonal Wire Mesh Cage, Update products from Hexagonal Wire Mesh. It is galvanized steel, double twisted, woven wire mesh filled with stone and used for various applications including, but not limited to, retaining walls, slope paving, out fall structures, weirs, drop structures and stream bank protection.


    Gabion Basket Specification list


    mesh size :60*80mm, 80*100mm, 100*120mm
    mesh body wire :2.7mm,3.05mm
    edge wire :3.4mm,3.8mm
    Lacing wire :2.2mm 3.2mm
    gabion box size:1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 6*2*0.3m 6*2*0.5m
    Surface treatment :heavy zinc coated galvanized, pvc coated
    useretaining walls, channel lining and other applications
    Hexagonal Gabion Wire Mesh Basket

    Mesh Size

    (mm)

    Number of DiaphragmApprox Dimentions and VolumesToleranceColor

    Wire Diameter

    (mm)

    Length

    (m)

    Width

    (m)

    Height

    (m)

    Capacity

    (m³)

    60×80 mm


    80×100 mm


    90×110 mm


    100×120mm


    120×150mm


    110×130mm


    12.001.000.300.60

    Length±5%


    Width±5%


    Height±5%

    Blue


    Red


    Green


    Grey


    Black

    2.0 -4.0 mm
    12.001.000.501.00
    12.001.001.002.00
    23.001.000.300.90
    23.001.000.501.50
    23.001.001.003.00
    34.001.000.301.20
    34.001.000.52.00
    34.001.001.004.00
    12.000.500.500.50
    23.000.500.500.75

    Gabion Basket Application:

    • Control and guide rivers and floods;
    • Flood discharge dam and diversion dam;
    • Rockfall protection;
    • Preventing water adnd soil erosion;
    • Bridge protection;
    • Soild Soil structure;
    • Coastline Defence;
    • Port Works;
    • Retaining Wall, Road Protection;
    • Marine and Seawall Protection,
    • Landscaping;
    • Earth Control and Soil Conservation
    • Retaining Structures
    • Groynes at the River
    • Lining of Canals and Dams

    100x120mm 2x1x1 3.05mm Pvc Coated Gabion Baskets 270 Gsm Zinc Coated100x120mm 2x1x1 3.05mm Pvc Coated Gabion Baskets 270 Gsm Zinc Coated

    Gabion Basket Advantages

    (1) It is convenient to use, and can be used only by tiling the net surface into wall surfaces and building cement;

    (2) the construction is simple and does not need special technology;

    (3) Strong ability to resist natural damage, corrosion and adverse weather effects;

    (4) can withstand large-scale deformation without collapsing. It plays a role in fixing heat preservation and heat insulation.

    (5) The excellent technological foundation ensures the uniformity of coating thickness and has stronger corrosion resistance;

    (6) Save transportation costs. It can be shrunk into small rolls and wrapped in moisture-proof paper, occupying little space.


    Gabion Basket Packing and Loading


    After the production of gabion net cage is completed, in order to save volume, compression packaging can be bundled.
