High Quality Military Square Shape Defensive Galvanized Gabion
Barriers In Ghana
1. Defensive Barriers Introduction
Hot dip galvanized gabion boxes with geotextile are also called
fortresses, protective walls, sand cages, welded gabion boxes, etc.
This is a multi-cellular system made of galvanized welded mesh and
lined with non-woven fabric. The provided connection extension and
connection unit may be used. It is easy to install and requires
minimal manpower and commonly available equipment. After expansion,
it is filled with sand and stones, and then welded with gabion
barriers like defense walls or bunkers. It is widely used for
defensive barriers and flood control.
2. Working principle:
It is made of galvanized welded mesh plate, spring belt and other
accessories, which can be filled with sand, soil, cement and stone,
and can be used alone or connected by some defense barriers.
3. Quality assurance:
Our factory has been verified on site by SGS Group, the world's
leading inspection company. Our products strictly follow ISO9001,
SGS and CE certification. Our products comply with BS EN
10244-2:2009 and BS EN 1208-2:201
| Wire Diameter: | 5.0mm (Standard), 4.0mm |
| Surface treatment: | Hot dipped galvanized |
| Mesh Hole: | 76.2*76.2mm (Standard), 80*80mm |
| Hole shape: | Square |
| Processing Service: | Welding, Cutting |
| Diameter of Spring: | 4.0mm |
| Diameter of Joint Pin: | 4.0mm |
| Cells per Set: | 1 cell, 2 cells, 3 cells, 4 cells, 5 cells |
| Color of Geotextile: | Military Green, Beige, Brown, Sand Color |
| Weight of Geotextile: | 300GSM (Standard) |
| Mesh Opening: | 50*50mm, 75*75mm, 76.2*76.2mm, 50*100mm, 100*100mm, ect |
| Panel Size: | 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested |
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Application of Defensive Barriers:
Peripheral security and defense wall
Equipment protection
Shelter for personnel and materials
Observation point
Defensive firing position sentry
Explosive and contraband search area
Highway inspection station
Border crossing checkpoint
Protect existing structures
Flood control retaining wall beach erosion
Coastal Area Protection Project
Advantages of Defensive Barrier:
1. Removable
It is assembled by panels and spring wires, and can be folded into
a whole during loading and transportation.
2. Anticorrosion
The raw material is hot-dip galvanized wire, which can be used for
10 years or more and is suitable for external protection.

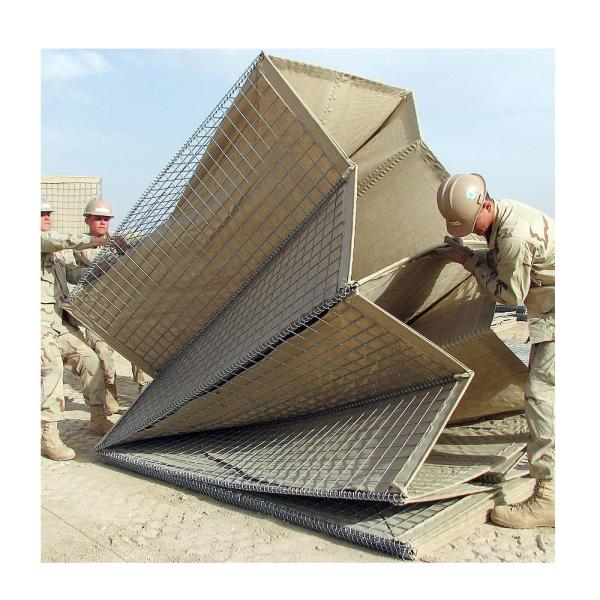

3. Easy installation
When you get it, open it in a spacious place and fill it with sand
and mud. Even 2-3 people can finish it.
4. Rapid displacement
When you want to use it in another place, just move it and it can
be used many times.
5. Easy to repair
If a part is damaged, throw it away and connect it with a new one.
