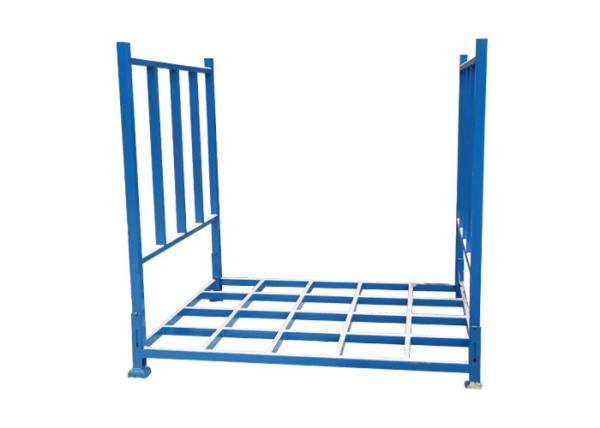

    Demountable Galvanised Steel Post Pallet Cages Stillages For Brisbane

    Ask Lasest Price
    Brand Name : Shuxin
    Model Number : SX-Stacking racks
    Certification : CE
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 8-15 working days
    • Product Details
    • Company Profile

    Demountable Galvanised Steel Post Pallet Cages Stillages For Brisbane

    Demountable Galvanised Steel Post Pallet Cages Stillages For Brisbane


    Product Description


    Stacking rack / Pallet is also called movable rack. It can make the best use of the space of the warehouse under the condition which can not use the firm racks.


    Meanwhile,it can play its double function of the rack and package and make the high density of the warehouse. Stacking rack / Pallet is widely used in various fields, like transporting, moving and storing with mechanized equipments.


    Specification


    Model No.Exterior DimensionInterior Dimension

    Loading

    capacity

    Stackability

    Total

    container

    LxWxH(mm)LxWxH(mm)kg
    SX-11300x1200x12001200x1150x1000100041x40'HQ
    SX-21300x1200x14001200x1150x120010004
    SX-31400x1200x12001300x1150x1000100041x40'HQ
    SX-41400x1200x14001300x1150x120010004
    SX-51500x1200x12001400x1150x1000100041x40'HQ
    SX-61500x1200x14001400x1150x120010004
    SX-71600x1200x12001500x1150x1000100041x40'HQ
    SX-81600x1200x14001500x1150x120010004
    MaterialMild steel Q235
    FinishPowder coating
    Available designDetachable/undetachable
    Application areaWarehouse, logistic, recycling, etc.
    RemarkCostomized or OEM support
    Key features

    1. Safe, secure and simple stacking

    2. Increased handling and storage flexibility

    3. By positioning the bottom angles of the top rack over the stacking tubes of the unit below, the Nestainer rack can be guided into it’s stacked position for full column-to-column loading


    Applications

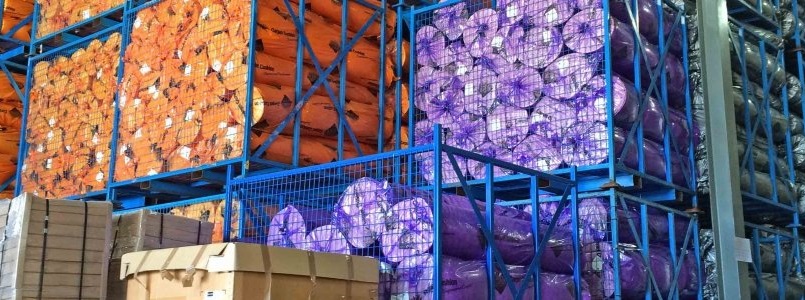

    The Stack Racks has been designed as relocatable, stackable racking able to utilize all areas of your storage facility. Special ‘V’ rails allow for fast placement and stable stacking.


    The Stack Racks has been fitted with removable mesh panels to each side and the rear for product protection and is suitable for placement of a standard pallet. The Rack has an added advantage of being nest able 10 high (when empty) for transport and storage and is stackable up to 4 high when fully loaded.


    Main benefits


    1. This Post Pallet Stillage is fully galvanised for complete corrosion resistance;

    2. Post Pallet base is constructed from super strong 60x40mm RHS steel;

    3. Extremely sturdy double cruciform support base design;

    4. Removable - Stillage Posts are 70mm diameter;

    5. Can stack vertically to a huge 4 high;

    6. Massive 1000kg load capacity.

    7. Increasing storage space utilization

    8. Improving labor/equipment efficiency

    9. Enhancing warehouse organization

    10.Increasing handling and storage flexibility
