    Military Hesco Bastion Sand Filled Barriers Retaining Wall For Protection

    Ask Lasest Price
    Brand Name : SHUXIN
    Model Number : SX-Hesco Bastion Barrier
    Certification : ISO:9001,
    Price : Negotiated
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 100 pcs per day
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

    Military Hesco Bastion Sand Filled Barriers Retaining Wall For Protection

    Military Hesco Bastion Sand Filled Barriers Retaining Wall For Protection

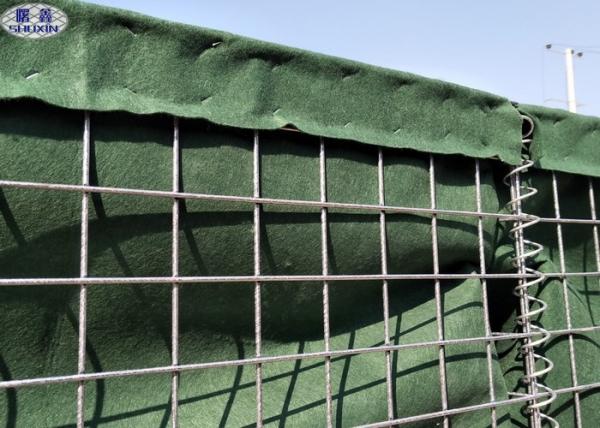

    HESCO Bastion Barrier is also named as Welded bastion, Welded defense wall, Welded Barrier, Sand Cage, Welded Gabion box, etc. It is a prefabricated, multi-cellular system, made of Galvanized welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand,stone,then Welded Gabion barrier like a defence wall or bunker,it is widely used for military fortification and flood control.Accessories Supplied With Carrier Units.


    operational principle


    It is made of galvanized welded mesh, spring with other fittings, canbe filled with sand,earth,cement, stone, can be used in separate cell or some cells joint together.


    Quick Details


    Hesco Barrier Specification

    ModelHeightWidthLengthInternal Cells
    SX-1(Mil 1)54”(1.37m)42”(1.06m)32’9”(10m)5+4=9 cells
    SX-2(Mil 2)24”(0.61m)24”(0.61m)4’(1.22m)2 cells
    SX-3(Mil 3)39”(1.0m)39”(1.0m)32’9”(10m)5+5=10 cells
    SX-4(Mil 4)39”(1.0m)60”(1.52m)32’9”(10m)5+5=10 cells
    SX-5(Mil 5)24”(0.61m)24”(0.61m)10’(3.05m)5 cells
    SX-6(Mil 6)66”(1.68m)24”(0.61m)10’(3.05m)5 cells
    SX-7(Mil 7)87”(2.21m)84”(2.13m)91’(27.74m)5+4+4=13 cells
    SX-8(Mil 8)54”(1.37m)48”(1.22m)32’9”(10m)5+4=9 cells
    SX-9(Mil 9)39”(1.0m)30”(0.76m)30’(9.14m)6+6=12 cells
    SX-10(Mil 10)87”(2.21m)60”(1.52m)100’(30.5m)5+5+5+5+5=20 cells
    SX-11(Mil 11)48”(1.22m)12”(0.30m)4’(1.22m)2 cells
    SX-12(Mil 12)84”(2.13m)42”(1.06m)108’(33m)5+5+5+5+5+5=30 cells
    SX-19(Mil 19)108”(2.74m)42”(1.06m)10’5”(3.18m)6 cells

    Detail Specification


    1. Wire diameter: 4-5mm

    2. Mesh size: 3" (75x75mm,50x50mm)

    3. Panel size: 12 type size for any security protection,suddenly burst attacks

    4. Geotextile: in heavy duty non-woven polypropylene;

    5. Color: Grey and Military Green,Sand color etc.

    6. Finish: hot dipped galvanized, Galfan wire.

    7. Packing: wrapped with shrink film or packed in pallet


    Application


    1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy and robust solution for emergency flood protection or long-term wetland restoration


    2. Defensive Barriers: Protecting both military and civilian personnel in dangerous environments demands defensive solutions that are secure, reliable and readily available.


    3. Protective Barriers: Protect your workforce,Create a secure refuge for your employees by
    providing protection for up to eight people with Accommodation Bunker.


    4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer-facing perimeter security where a more benign appearance is required.


    Features


    1. having a Galfan coated steel mesh framework

    2. integrated cells to provide internal structural integrity.

    3. exceptional strength and structural integrity

    4. High tensile and anti-impact capability

    5. making transportation efficient and rapid
