Army Wall Hesco Bastion Barrier Sand Wall Military Hesco Flood
Barriers Prices
1. Introduction:

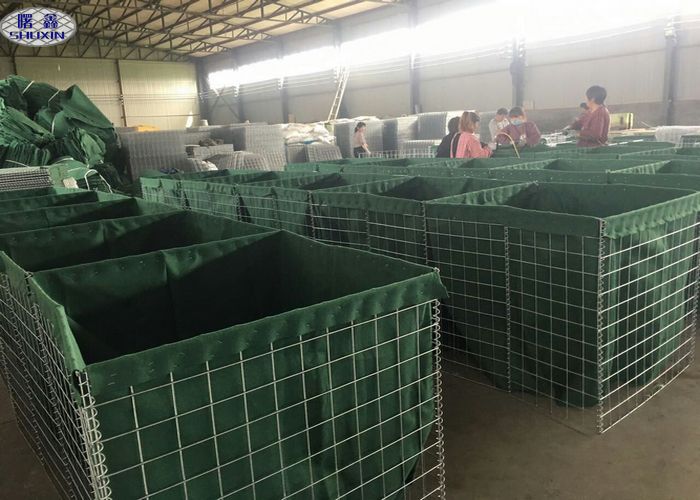

Welded Gabion barrier with Geotextile is also named as Welded
bastion, Welded defense wall, Welded Barrier, Sand Cage, Welded
Gabion box, etc. It is a prefabricated, multi-cellular system, made
of Galvanized welded mesh and lined with non-woven geotextile.
Units can be extended and joined using the provided joining pins.
It is easy installed with using minimal manpower and commonly
available equipment. After extended, it is filled into sand, stone,
then Welded Gabion barrier like a defence wall or bunker, it is
widely used for military fortification and flood
control.Accessories Supplied With Carrier Units.
2. Defensive Bastion Barrier Specification:
Wire diameter: 3mm, 4mm, 5mm
Mesh size: 50mmx50mm, 75mmx75mm,76.2mmx76.2mm,100mmx100mm
Panel size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, it also can be customized
according to customers requirement
Geotextile: in heavy duty non-woven polypropylene
Finish: hot dipped galvanized, galfan coated after welded
Packing: wrapped with shrink film or packed in pallet.
3. Operational principle:
It is made of galvanized welded mesh, spring with other
fittings,can be filled with sand, earth, cement, stone, can be used
in separate cell or some cells joint together.
Hesco Barrier Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
5. Application
- Defensive firing positions
- Highway checkpoints
- Border crossing checkpoints
- Protection existing structures
- High way traffic management
- Flood control
- Perimeter security and defence walls
- Equipment revetments
- explosive and contraband search areas
- Ammunition compounds
- Personnel and material bunkers
- Observation points
- Water courses
- Emergency flood deployment
- Erosion control
- Retaining walls
Features
- Easy to handle and install
- High tensile and anti-impact capability
- Long life, regular use
- Can be filled with sand, earth, cement, stone.
