5.0mm Diameter 30 cells EPW 1 (Enhanced Protective Wall) HESCO
Defensive Barriers
Description of HESCO Barrier Bastion:
HESCO Barrier is become more popular and become a househole name,
because its Outstanding contribution for Flood Control, Military
Denfence, and Hotel Protection in flood-prone areas along the
River.
HESCO Barrier was named after one company made them, and this
thechnology was grasped by our people and inproved, has Low-Cost
and High-Quality. It is assembled with Hot Dipped Galvanized and
Geotextile by Spring and Jonint Pin, which is can block explosion
and flood in wide range. Also can as the shooting range in
military.

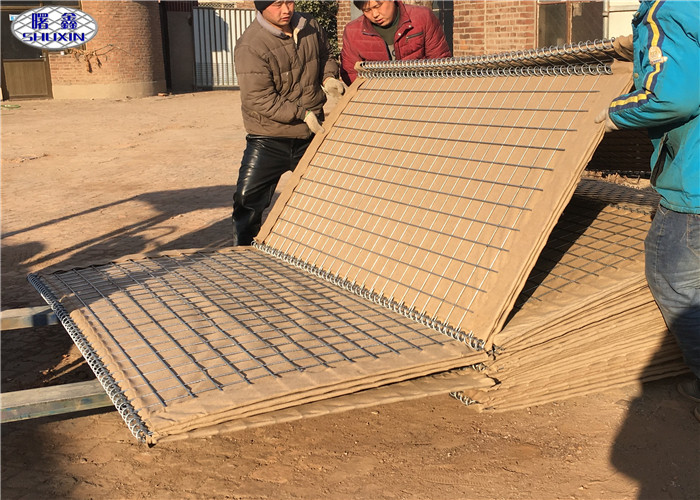

Quick View of HESCO Barrier:
Material: Low-carbon steel wire
Wire Diameter : 4-5.0mm
Spring Diameter : 4.0-4.5mm
Mesh Hole : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size: 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
Geotextile : In heavy duty non-woven polypropylene.
Finish : Hot Dipped Galvanized after /before welding, Galfan Coated
before welding
The Hesco barriers come in a variety of sizes. Most of the barriers
can also be stacked, and they are shipped collapsed in compact
sets. Example dimensions of typical configurations are 1.4m x 1.1m
x 9.8m (4'6" x 3'6" x 32') to 2.1m x 1.5m x 30m (7' x 5' x 100').
The Common Specification of HESCO Barrier as followed:
| MODEL | Height | Width | Length | NO. of Cells |
| SX-1 | 4'6"(1.37M) | 3'6"(1.06M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-2 | 7'(2.1M) | 3'6"(1.06M) | 108'(33M) | 30 cells(6*5) |
| SX-3 | 2'(0.61M) | 2'(0.61M) | 4'(1.21M) | 2 cells |
| SX-4 | 3'3"(1.0M) | 3'3"(1.0M) | 32'(10M) | 10 cells(2*5) |
| SX-5 | 2'(0.61M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-6 | 5'6"(1.68M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-7 | 7'3"(2.21M) | 7'(2.13M) | 90'(27.74M) | 13 cells(2*4,1*5) |
| SX-8 | 4'6"(1.37M) | 4'(1.22M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-9 | 3'3"(1.0M) | 2'6"(0.76M) | 30'(9.14M) | 12 cells(2*6) |
| SX-10 | 7'(2.12M) | 5'(1.52M) | 95'(30.5M) | 20 cells(4*5) |
| SX-11 | 3'3"(1.0M | 3'3"(1.0M) | 3'3"(1.0M) | 1 Cell |
| SX-12 | 7'3"(2.21M) | 7'3"(2.21M) | 7'3"(2.21M) | 1 Cell |
Application:
1. Flood Control.
Most of People used the HESCO Barrier as the bulwark all over the
river, unfold it and filled with sand or earth, instad of sandbags,
it is easy to operate and efficacious.
2. Military Defence
Most of army used HESCO Barrier for protection, because the bullet
can not penetrate it easily, it can prevent explosion, and not easy
to destroied.
3. Hotel Pretection
A lot of Superior Hotel used HESCO Barrier as the protection wall
outside, safety, and beautiful.
