Galvanized Coated Defensive and Protection Hesco Barriers for Sale
in Jordan

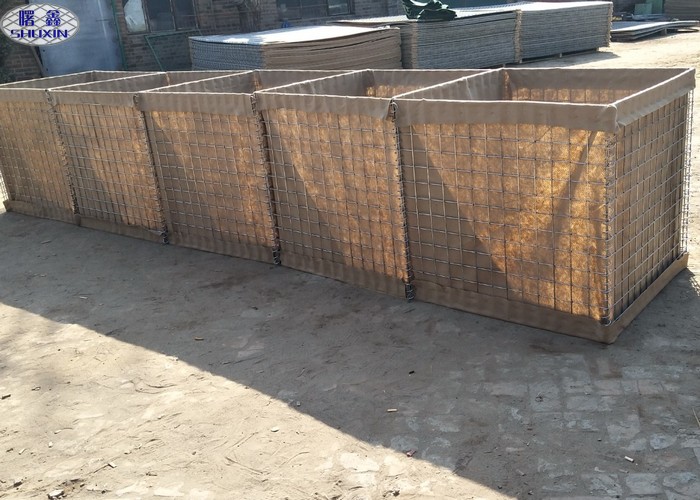

HESCO bastion is a modern gabion primarily used for flood control and military
fortifications. It is made of
a collapsible wire mesh container and heavy duty fabric liner, and
used as a temporary to semi-permanent
levee or blast wall against explosions or small-arms. It has seen
considerable use in Iraq and Afghanistan
for army and used lots of for homemade protection.
operational principle
It is made of galvanized welded mesh, spring with other fittings,
canbe filled with sand,earth,cement, stone, can be used in separate
cell or some cells joint together.
Hesco Barrier Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Detail Specification
1. Wire Diameter: 4-5mm
2. Mesh Size: 3" (75x75mm,50x50mm) 80*80mm
3. Panel Size: 13 type size for any security protection,suddenly
burst attacks
4. Geotextile: In heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: Hot dipped galvanized, Galfan wire.
7. Packing: Packed in pallet
Application
1. Environmental Barriers,Flood Barriers, a reliable,
easy-to-deploy and robust solution for emergency flood protection
or long-term wetland restoration
2. Defensive Barriers: Protecting both military and civilian
personnel in dangerous environments demands defensive solutions
that are secure, reliable and readily available.
3. Protective Barriers: Protect your workforce,Create a secure
refuge for your employees by
providing protection for up to eight people with Accommodation
Bunker.
4. Rockface: transforms the highly effective wall into an
aesthetically pleasing structure ideal for customer-facing
perimeter security where a more benign appearance is required.
