    Durable Geotextile Lined Welded HESCO Sand Filled Barriers for Perimeter Wall

    Ask Lasest Price
    Brand Name : SHUXIN
    Model Number : SX-HC03
    Certification : COC ISO
    Price : pls contact us
    Payment Terms : L/C, , T/T, Western Union, MoneyGram
    Supply Ability : 500 sets per week
    Delivery Time : 15-20 work days
    • Product Details
    • Company Profile

    Durable Geotextile Lined Welded HESCO Sand Filled Barriers for Perimeter Wall

    Durable Geotextile Lined Welded HESCO Sand Filled Barriers used for Perimeter Wall

    Description of Flood Control Retaining Wall:


    HESCO Barrier is become more popular and become a househole name, because its Outstanding contribution for Flood Control, Military Denfence, and Hotel Protection in flood-prone areas along the River.

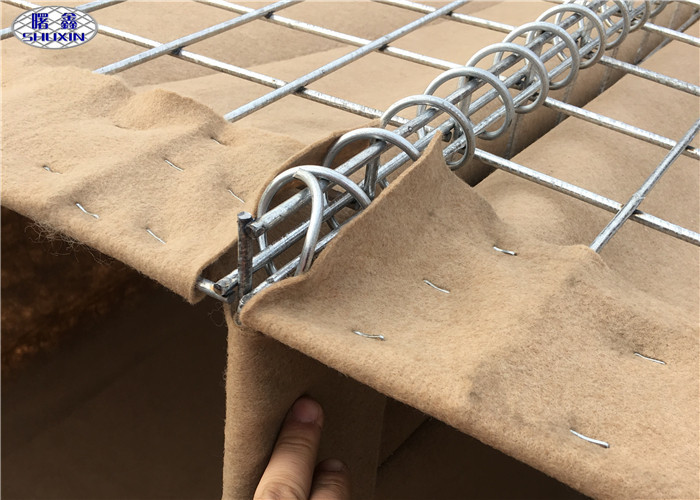

    HESCO Barrier was named after one company made them, and this thechnology was grasped by our people and inproved, has Low-Cost and High-Quality. It is assembled with Hot Dipped Galvanized and Geotextile by Spring and Jonint Pin, which is can block explosion and flood in wide range. Also can as the shooting range in military.


    Quick View of HESCO Barrier:

    Material: Low-carbon steel wire
    Wire Diameter : 4-5.0mm
    Spring Diameter : 4.0-4.5mm
    Mesh Hole : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
    Panel Size: 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
    Geotextile : In heavy duty non-woven polypropylene.
    Finish : Hot Dipped Galvanized after /before welding, Galfan Coated before welding


    The Hesco barriers come in a variety of sizes. Most of the barriers can also be stacked, and they are shipped collapsed in compact sets. Example dimensions of typical configurations are 1.4m x 1.1m x 9.8m (4'6" x 3'6" x 32') to 2.1m x 1.5m x 30m (7' x 5' x 100').

    The Common Specification of HESCO Barrier as followed:

    Hesco Barrier Specification

    ModelHeightWidthLengthInternal Cells
    SX-1(Mil 1)54”(1.37m)42”(1.06m)32’9”(10m)5+4=9 cells
    SX-2(Mil 2)24”(0.61m)24”(0.61m)4’(1.22m)2 cells
    SX-3(Mil 3)39”(1.0m)39”(1.0m)32’9”(10m)5+5=10 cells
    SX-4(Mil 4)39”(1.0m)60”(1.52m)32’9”(10m)5+5=10 cells
    SX-5(Mil 5)24”(0.61m)24”(0.61m)10’(3.05m)5 cells
    SX-6(Mil 6)66”(1.68m)24”(0.61m)10’(3.05m)5 cells
    SX-7(Mil 7)87”(2.21m)84”(2.13m)91’(27.74m)5+4+4=13 cells
    SX-8(Mil 8)54”(1.37m)48”(1.22m)32’9”(10m)5+4=9 cells
    SX-9(Mil 9)39”(1.0m)30”(0.76m)30’(9.14m)6+6=12 cells
    SX-10(Mil 10)87”(2.21m)60”(1.52m)100’(30.5m)5+5+5+5+5=20 cells
    SX-11(Mil 11)48”(1.22m)12”(0.30m)4’(1.22m)2 cells
    SX-12(Mil 12)84”(2.13m)42”(1.06m)108’(33m)5+5+5+5+5+5=30 cells
    SX-19(Mil 19)108”(2.74m)42”(1.06m)10’5”(3.18m)6 cells

    Application:


    1. Flood Control.

    Most of People used the HESCO Barrier as the bulwark all over the river, unfold it and filled with sand or earth, instad of sandbags, it is easy to operate and efficacious.

    2. Military Defence

    Most of army used HESCO Barrier for protection, because the bullet can not penetrate it easily, it can prevent explosion, and not easy to destroied.

    3. Hotel Pretection

    A lot of Superior Hotel used HESCO Barrier as the protection wall outside, safety, and beautiful.


    Durable Geotextile Lined Welded HESCO Sand Filled Barriers for Perimeter Wall
