Heavy Galvanized KESCO Barrier , Not HESCO Barrier for military
fortifications
Anping Shuxin Wire Mesh Involved in HESCO Barrier more than 13
year, have a professional team to meet kinds of requirements from
client. Hesco Barrier / Hesco Bastion, which is made of the steel
welded mesh and lined with non-woven geotextile , can be filled
with sand, earth, cement, stone, then as a defence wall or bunker
and widely used in the military to protect safety.
Material: Galvanized steel wire or Galfan/
zinc-5%aluminum wire
Service Life: 15-20 years
Price:19.8$-99.8$/set
Wire diameter: 3.0mm- 6.0mm
Aperture:50*50mm 75*75mm, 76.2*76.2mm 80*80mm 100*100mm etc
Color of geotextile:Grey and Military, Green,Sand color etc
Gram Weight of geotextile:200g/m2 or 300g/m2
Finish:hot dipped galvanized,Galfan wire.
Welded method:welded after galvanized or galvanized after welded
Packing:Wrapped with shrink film then packed in wood pallet or iron
pallet
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Defensive Barrier Application :
1. landscaping, as retaining walls, landscape urban landscape and
parks.
2. or high salt pollution in the environment, Gore can be used
where welded wire mesh technology.
3. within the welded wire mesh filled with stone or natural
cobblestone highway together protection, slope, roadway, bridge and
so on.
4. welded wire mesh is widely used in earth or soil reinforcement
such as desertification, slope protection, river, coastal
protection, reservoirs, canals and pipelines renovation, Rock
failure protection, bridge protection, protective net.

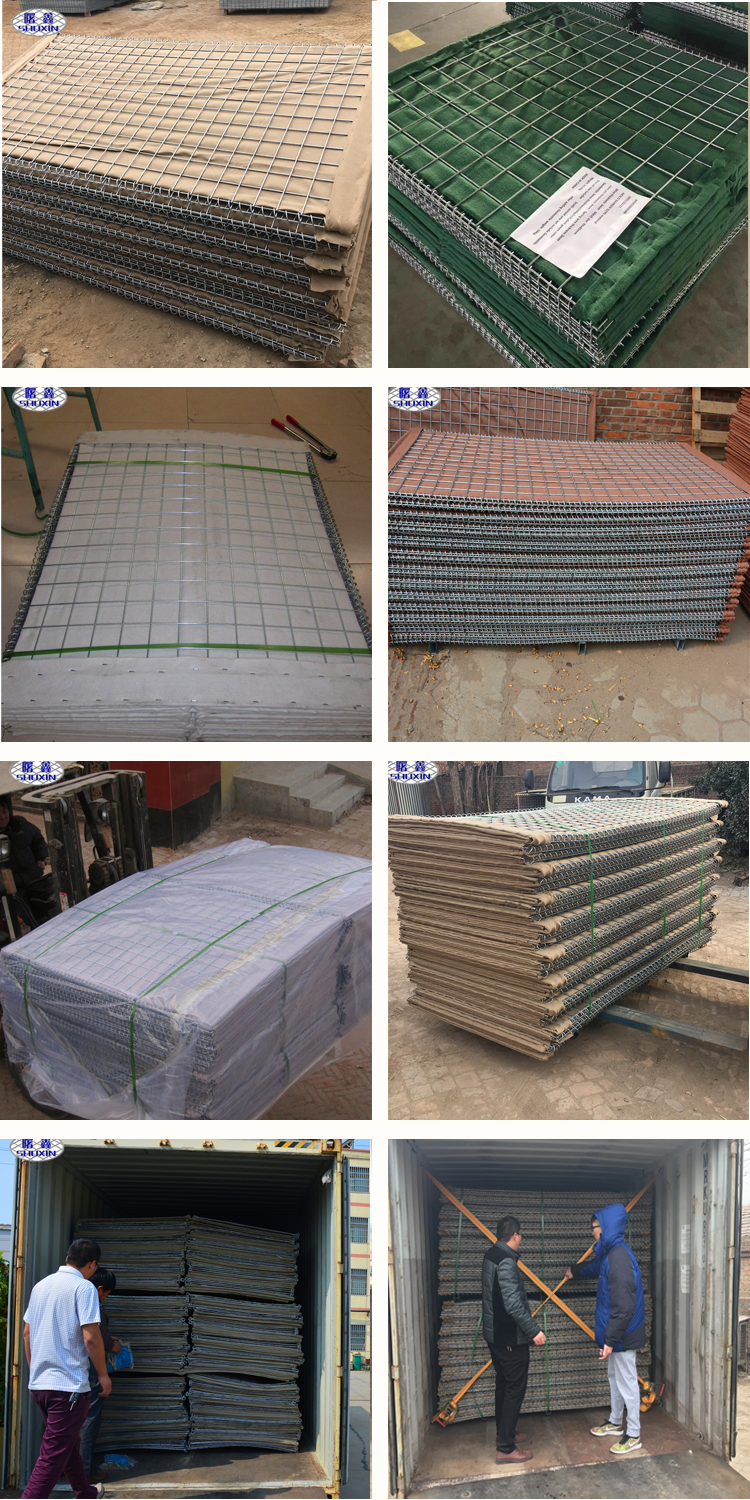

Package of HESCO Barrier
Usually used wooden pallet, stacked together.
