Geotextile Fabric Collapsible Wire Mesh Military Hesco Barrier
SHUXIN company had been produce welded wire mesh products hesco
barriers more than 15 years.
our products been supplied many countries's department of defense.
and army force.
such as UAE Jordan, USA,Greece,Saudi Aria, Dubai,Kenya ....
and our factory had been verified onsite by world-leading
inspection company SGS Group.
we have CE ISO certification. and we have confidence to become your
stable and believable supplier in China.
Welcome inquiry for us about hesco barriers.
Introduction of Hesco Military Barriers :
1. Hesco Military Barrier is a multi-cellular barrier system lined with heavy-duty,
geotextile fabric and manufactured from welded Zinc-Aluminium
coated steel mesh.
2. hesco barriers Specification:
1) Material: galvanized wire
2) Wire diameter: 5mm
3) Hole: 76.2×76.2mm
4) Hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be
produced as requested.
5) Geotextile: in non-woven geotextile, color can be white,
beige-sand color.
6) Color: White, Sand color, Military Green
The Common Specification of hesco Military barriers as followed:
| MODEL | Height | Width | Length | NO. of Cells |
| SX-1 | 4'6"(1.37M) | 3'6"(1.06M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-2 | 7'(2.1M) | 3'6"(1.06M) | 108'(33M) | 30 cells(6*5) |
| SX-3 | 2'(0.61M) | 2'(0.61M) | 4'(1.21M) | 2 cells |
| SX-4 | 3'3"(1.0M) | 3'3"(1.0M) | 32'(10M) | 10 cells(2*5) |
| SX-5 | 2'(0.61M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-6 | 5'6"(1.68M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-7 | 7'3"(2.21M) | 7'(2.13M) | 90'(27.74M) | 13 cells(2*4,1*5) |
| SX-8 | 4'6"(1.37M) | 4'(1.22M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-9 | 3'3"(1.0M) | 2'6"(0.76M) | 30'(9.14M) | 12 cells(2*6) |
| SX-10 | 7'(2.12M) | 5'(1.52M) | 95'(30.5M) | 20 cells(4*5) |
| SX-11 | 3'3"(1.0M | 3'3"(1.0M) | 3'3"(1.0M) | 1 Cell |
| SX-12 | 7'3"(2.21M) | 7'3"(2.21M) | 7'3"(2.21M) | 1 Cell |
Military barriers Sand Wall Application:
The versatility of Geotextile Fabric Collapsible Wire Mesh Military Hesco Barrier enables it to be used across a variety of applications such as

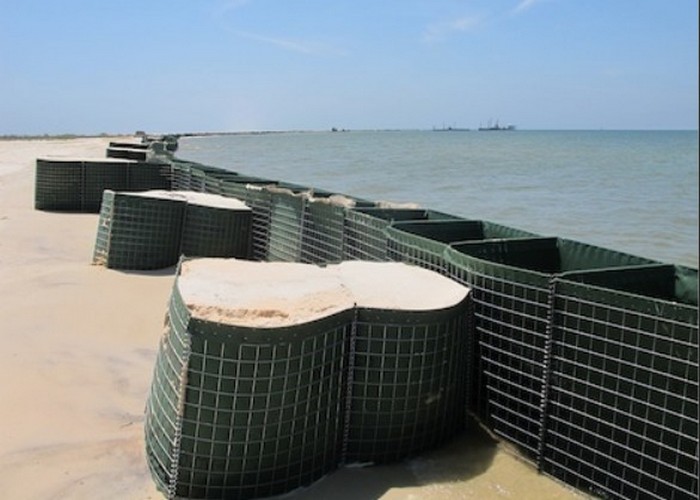

coastal erosion, flood protection, river and bank stabilisation,
retaining walls, land reinforcement and soil conservation.
1. Flood protection
Most of People used as the bulwark all over the river, unfold it
and filled with sand or earth, instad of sandbags, it is easy to
operate and efficacious.
2. Military Defence
Most of army used for protection, because the bullet can not
penetrate it easily, it can prevent explosion, and not easy to
destroied.
3. Hotel Pretection
A lot of Superior Hotel used as the protection wall outside,
safety, and beautiful.
4.River and bank stabilisation
5.Retaining walls
6.land reinforcement and soil conservation
