Various Sizes Of Defensive Barrier Fortress Sand Walls With
Geotextile
Introduction of Military Barriers of ANPINGSX

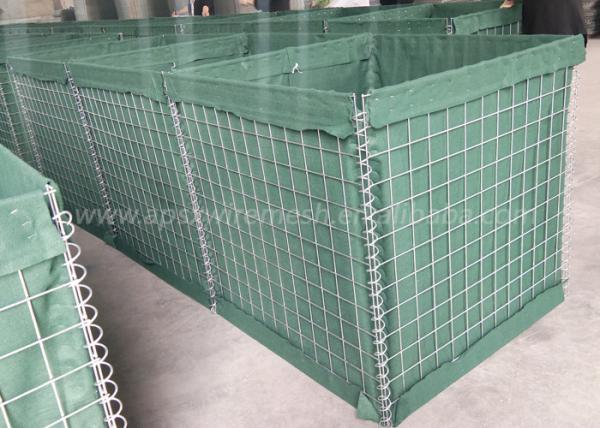

Hot Dipped Galvanized Gabion Box with Geotextile is also named as
bastion, defense wall,Sand Cage, Welded Gabion box, etc. It is a
prefabricated, multi-cellular system,
made of Galvanized welded mesh and lined with non-woven geotextile.
Units can be extended and joined using the provided joining pins.
It is easy installed with using minimal manpower and commonly
available equipment. After extended, it is filled into
sand,stone,then Welded Gabion barrier like a defence wall or
bunker,it is widely used for military fortification and flood
control.Accessories Supplied With Carrier Units.
Material and Use way
It is made of galvanized welded mesh panels ,spring with other
fittings,can be filled with sand,earth,cement,stone,can be used in
separate cell or some cells joint together.
The Quanlity certificate
our factory had been verified on site by world-leading inspection
company SGS Group.
Our products are strictly follow ISO9001,SGS,CE certificate.
our product comply with BS EN 10244-2:2009 & BS EN 1208-2:2012
Defensive Mesh gabion box Application:
Perimeter Security and Defence Wall
Equipment Revetments
Personnel and Material Bunkers
Observation Points
Defensive Firing Positions
Guard Posts
Explosives and Contraband Search Areas
Highway Checkpoints
Border Crossing Checkpoints
Protecting Existing Structures
Flood control retaining wall
Coastal Erosion
Protection engineering of seaside area.
Defensive Barrier Wall specification:
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Defensive Barrier Wall advantage
1.Defensive Barrier Wall that has the ability to resist explosion
shock waves and can limit the destructive effects of explosions
within a certain range.
2.Compared with the reinforced concrete explosion-proof wall, it
has the advantages of light weight, easy loading and unloading,
recyclable and reusable.
3.The Defensive Barrier cage produced by our company has as many as
12 specifications, in various colors such as earthy gray, earthy
yellow, grass green, etc., and can be flexibly combined to apply to
different scenes or purposes.
