Galfan Military Hesco Barrier Hesco Bastion Welded Gabion Army
Defensive Bastion Army Bastion Hesco Defensive
Useful
Control and guide of water or flood.
Flood bank or guiding bank.
Security Barrier and Defence Wall
Water and soil protection.
Bridge protection.
Strengthening structure of soil.
Protecting engineering of seaside area.
The hesco bastion is a modern gabion primarily used for flood
control and military fortifications. It is made of a collapsible
wire mesh container and heavy duty fabric liner, and used as a
temporary to semi-permanent levee or blast wall against explosions
or small-arms. It has seen considerable use in Iraq and
Afghanistan,Dominican Republic, Afghanistan, Iraq, USA, France,
Kenya, Iran, Saudi Arabia, Italy, Germany.Pakistan, Kazakhstan,
Mali, Burkina Faso, Ghana, Mozambique
Specification:
| Wire diameter | 3.85mm,4mm,5mm etc |
| Mesh Size | 75mmx75mm etc |
| Spring wire diameter | 3mm,4mm,5mm etc |
| Panel Finish | Hot dipped galvanized or Galfan coated |
| Geotextile | Heavy duty non-woven polypropylene, color can be white, beige-sand,
olive green, etc |
| Packing Wrapped with shrink film or packed in pallet |
| Technical Specification for Geotextile Fabric |
| Color | Beige sand,Olive green,Grey |
| Mass(g/sqm) | 250,300,350 |
| Tensile strength | 16kN |
| Tear Strength | 0.42kN |
| CBR Puncture | 3.1kN |
UV strength retention ASTM D4355 | 50% at 500hours
(5 years use life in common environment) |
70% at 500hours
(10 years use life in common environment)
|
Product Name
Galvanized Welded Mesh Defensive Barrier
Finish
Normal Galvanized, Galfan Wire
Geotextile
300-350g/Sqm in Beige or Green Color
Specification
1.37x1.06x1.06
Trade Item
Delivery Terms:FOB, CIF
Payment Currency:USD, EUR, AUD,JPY, CAD, GBP, CNY
Payment Item:T/T, L/C, PayPal, Escrow
Nearest Port:Xingang port,Qingdao port
Delivery Time:General after 25days upon received T/T30% advance
payment
Describe
Mesh gabion is also known as gabion barrier, gabion concertainer.
It is made of steel welded mesh, spring coil, non-woven geotextile
with other fittings to make a simple and strong multi-cellular
system.
The finish of barrier is in pre galvanized,galfan coated,hot dipped galvanized to anti corrosion for long lifespan. The barrier is easy to move and install,
so it is widely used in military defensive blast wall, flood
control, erosion control, security fence barrier and garden
decoration.
Product Item standards | Height | Width | Length | Cells |
SHUXIN MIL1 | 54''(1.37m) | 42''(1.06m) | 32'9''(10m) | 1*4+1*5 cells |
SHUXIN MIL2 | 24''(0.61m) | 24''(0.61m) | 4'(1.22m) | 2 cells |
SHUXIN MIL3 | 39''(1.00m) | 39''(1.00m) | 32'9''(10m) | 2*5 cells |
SHUXIN MIL4 | 39''(1.00m) | 60''(1.52m) | 32'9''(10m) | 2*5 cells |

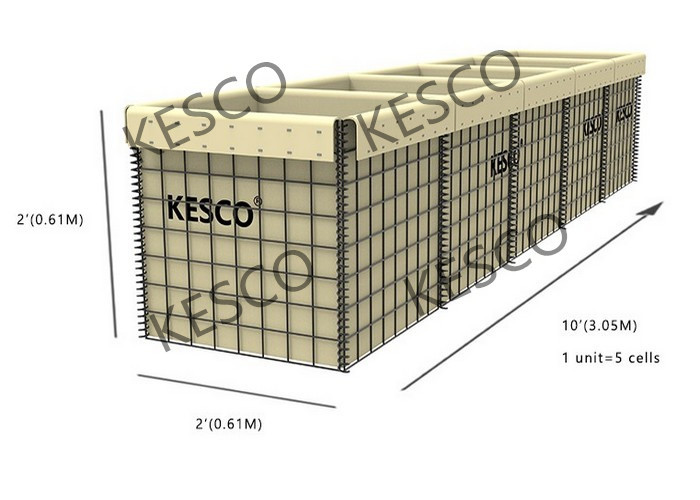

SHUXIN MIL5 | 24''(0.61m) | 24''(0.61m) | 10'(3.05m) | 5 cells |
SHUXIN MIL6 | 66''(1.68m) | 24''(0.61m) | 10'(3.05m) | 5 cells |
SHUXIN MIL7 | 87''(2.21m) | 84''(2.13m) | 91'(27.74m) | 2*4+1*5 cells |
SHUXIN MIL8 | 54''(1.37m) | 48''(1.22m) | 32'9''(9.14m) | 1*4+1*5 cells |
SHUXIN MIL9 | 39'(1.00m) | 30''(0.76m) | 30'(9.14m) | 2*6 cells |
SHUXIN MIL10 | 87''(2.21m) | 60''(1.52m) | 100'(30.5m) | 4*5 cells |
SHUXIN MIL11 | 48''(1.22m) | 12''(0.3m) | 4'(1.22m) | 4 cells |
SHUXIN MIL12 | 84''(2.13m) | 42''(1.06m) | 108'(33m) | 6*5 cells |
SHUXIN MIL19 | 108''(2.74m) | 42''(1.06m) | 10'5''(3.18m) | 3 cells |
Application:
The hesco barriers is a modern gabion primarily used for flood control and military fortifications. It is made of a collapsible wire mesh container and heavy duty
fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms. It has seen considerable use in Iraq and Afghanistan.
Certification:
CE certification, BV Certification, SGS Certification
We can provide inspection and certification before shipment,
quality assurance
The strength factory has its own equipment for 10 years
Payment method, convenient, simple and safe
Export term:FOB Tianjin port
CIF Port
Package:
1. several pieces in bundle+pallet+plastic film.
2. one set/carton, then on pallet.
3. other packing according to buyer's requirement.
