1 x 1 x 1 Military Protective Bastion Galfan Hesco Barrier Sand
Filled Gabion Hesco Blast Wall Containment Prices
Sand Filled Barriers are some lined units assembled by galvanized gabion baskets with
heavy duty non-woven geotextile to prevent flood. China barrier
bastion factory-Anping Shuxin Wire Mesh Manufactory Co.,Ltd is one
original and professional maufacturer located in Anping county-the
largest wire mesh base in China.
Available OEM & ODM in developing military barriers, we can provide
all ideal designs for your projects. The popular unit types of
blast wall, all types can be customized to recoverable types .
Regarding the color of geotextile, available in beige color,
militatry green color and grey color,etc.
Assembly

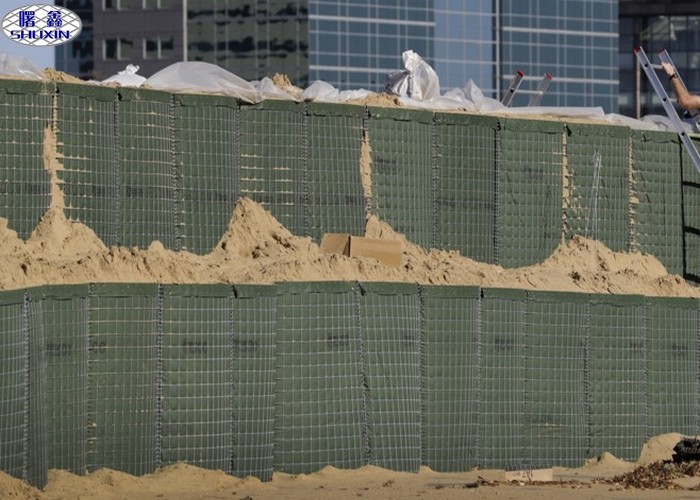

Assembling the Hesco Bastion entails unfolding it and (if available) using a front end loader
to fill it with sand, dirt or gravel. The placement of the barrier
is generally very similar to the placement of a sandbag barrier or
earth berm except that room must generally be allowed for the
equipment used to fill the barrier. The main advantage of Military Barrier, strongly contributing to their popularity with troops and flood
fighters, is the quick and easy setup.
Previously, people had to fill sandbags, a slow undertaking, with
one worker filling about 20 sandbags per hour. Workers using
Military Barrier and a front end loader can do ten times the work of those using
sandbags.
The Hesco Barrier come in a variety of sizes. Most of the barriers
can also be stacked, and they are shipped collapsed in compact
sets. Example dimensions of typical configurations are 4'6" x 3'6"
x 32' (1.4m x 1.1m x 9.8m) to 7' x 5' x 100' (2.1m x 1.5m x 30m).
We will meet any special sizes you required, and support
professional advises according to your projects.
Sand Filled Barriers operational principle
It is made of galvanized welded mesh panels, spring with other
fittings, canbe filled with sand,earth,
cement, stone, can be used in separate cell or some cells joint
together.
Sand Filled Barriers Detail Specification
1. Wire diameter: 4-5mm
2. Mesh size: 3" (75x75mm,50x50mm)
3. Panel size: 12 type size for any security protection,suddenly
burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: hot dipped galvanized, Galfan wire.
Sand Filled Barriers Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |

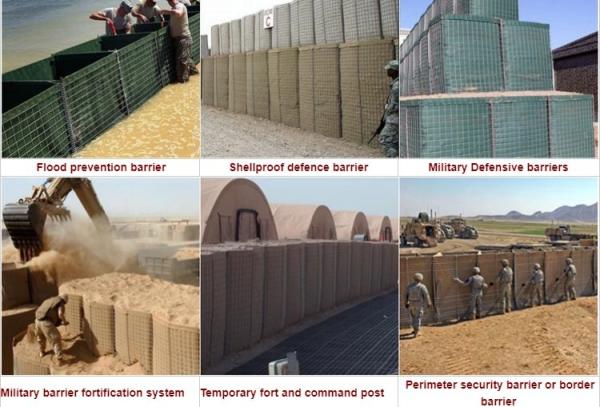

Sand Filled Barriers Application
1. having a Galfan coated steel mesh framework
2. integrated cells to provide internal structural integrity.
3. exceptional strength and structural integrity
4. High tensile and anti-impact capability
5. making transportation efficient and rapid
Package: Warapped with shrink film then packed in pallet,and the last
packed with steel belt .
We supply hesco barrier from Mil1-Mil10
It is a multi-cellular barrier system manufactured from welded
zinc-aluminum coated steel wire mesh and joined with vertical,
helical-coil joints. The units are lined with a heavy-duty
non-woven polypropylene geotextile. When joined and filled, the
system can be used to create barriers of exceptional strength and
structural integrity.
The hesco bastion is a modern gabion primarily used for flood
control and military fortifications. It is made of a collapsible
wire mesh container and heavy duty fabric liner, and used as a
temporary to semi-permanent levee or blast wall against explosions
or small-arms. It has seen considerable use in Iraq and
Afghanistan,Dominican Republic, Afghanistan, Iraq, USA, France,
Kenya, Iran, Saudi Arabia, Italy, Germany.Pakistan, Kazakhstan,
Mali, Burkina Faso, Ghana, Mozambique
