    5 Cells Hot Dipped Galvanized Hesco Bastion Barrier

    Ask Lasest Price
    Brand Name : SHUXIN
    Model Number : flood barriers
    Certification : CE SGS ISO COC
    Price : Negotiated
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 units per week
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

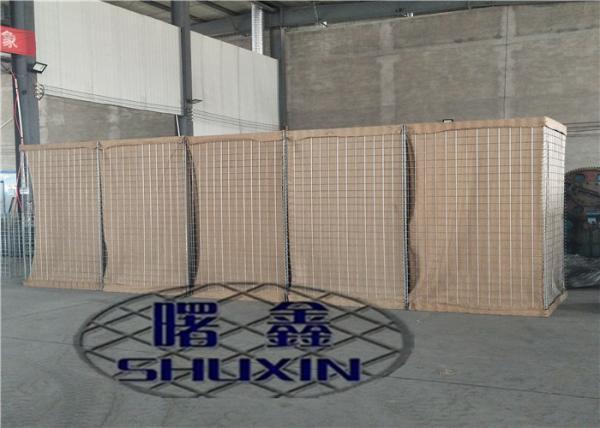

    5 Cells Hot Dipped Galvanized Hesco Bastion Barrier

    Hot Dipped Galvanized Hesco Barriers for Security Mesh Military Blast Barrier Military gabion Flood Barriers


    Sand Filled Barriers also named as welded gabion box, etc. It is a prefabricated, multi-cellular system, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand,stone,then like a defence wall or bunker,it is widely used for military fortification and flood control.Accessories Supplied With Carrier Units.

    5 Cells Hot Dipped Galvanized Hesco Bastion Barrier


    Sand Filled Barriers operational principle


    It is made of galvanized welded mesh panels, spring with other fittings, canbe filled with sand,earth,

    cement, stone, can be used in separate cell or some cells joint together.


    Sand Filled Barriers Detail Specification


    1. Wire diameter: 4-5mm

    2. Mesh size: 3" (75x75mm,50x50mm)

    3. Panel size: 12 type size for any security protection,suddenly burst attacks

    4. Geotextile: in heavy duty non-woven polypropylene;

    5. Color: Grey and Military Green,Sand color etc.

    6. Finish: hot dipped galvanized, Galfan wire.

    7. Packing: wrapped with shrink film or packed in pallet

    5 Cells Hot Dipped Galvanized Hesco Bastion Barrier


    Sand Filled Barriers Specification


    ModelHeightWidthLengthInternal Cells
    SX-1(Mil 1)54”(1.37m)42”(1.06m)32’9”(10m)5+4=9 cells
    SX-2(Mil 2)24”(0.61m)24”(0.61m)4’(1.22m)2 cells
    SX-3(Mil 3)39”(1.0m)39”(1.0m)32’9”(10m)5+5=10 cells
    SX-4(Mil 4)39”(1.0m)60”(1.52m)32’9”(10m)5+5=10 cells
    SX-5(Mil 5)24”(0.61m)24”(0.61m)10’(3.05m)5 cells
    SX-6(Mil 6)66”(1.68m)24”(0.61m)10’(3.05m)5 cells
    SX-7(Mil 7)87”(2.21m)84”(2.13m)91’(27.74m)5+4+4=13 cells
    SX-8(Mil 8)54”(1.37m)48”(1.22m)32’9”(10m)5+4=9 cells
    SX-9(Mil 9)39”(1.0m)30”(0.76m)30’(9.14m)6+6=12 cells

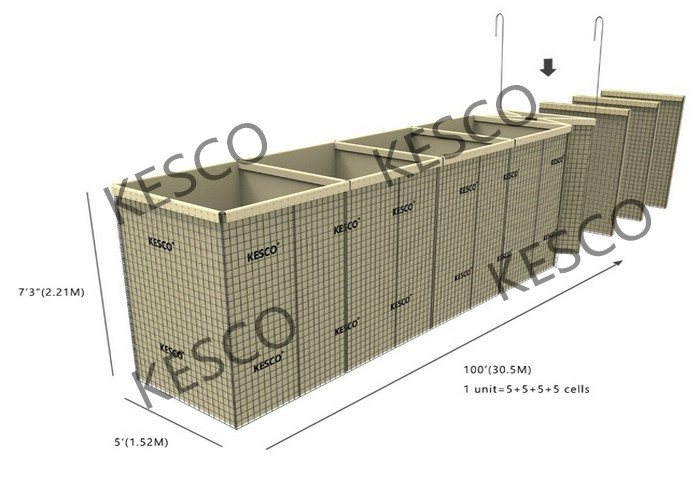

    SX-10(Mil 10)87”(2.21m)60”(1.52m)100’(30.5m)5+5+5+5+5=20 cells
    SX-11(Mil 11)48”(1.22m)12”(0.30m)4’(1.22m)2 cells
    SX-12(Mil 12)84”(2.13m)42”(1.06m)108’(33m)5+5+5+5+5+5=30 cells
    SX-19(Mil 19)108”(2.74m)42”(1.06m)10’5”(3.18m)6 cells

    5 Cells Hot Dipped Galvanized Hesco Bastion Barrier

    Sand Filled Barriers Application


    1.Perimeter security and defence walls

    2.Equipment revetments
    3.Ammunition compounds
    4.Personnel and material bunkers
    5.Obsercation points
    6.Defensive firing positions
    7.Entry control points
    8.Guard posts
    9.Explosives and contraband search areas
    10.Highway checkpoints
    11.Border crossing checkpoints
    12.Protecting existing structures
    13.Highway traffic management
    14.Hostile Vehide Mltigation

    Sand Filled Barriers Features


    1. having a Galfan coated steel mesh framework

    2. integrated cells to provide internal structural integrity.

    3. exceptional strength and structural integrity

    4. High tensile and anti-impact capability

    5. making transportation efficient and rapid


    The hesco bastion is a modern gabion primarily used for flood control and military fortifications. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms. It has seen considerable use in Iraq and Afghanistan,Dominican Republic, Afghanistan, Iraq, USA, France, Kenya, Iran, Saudi Arabia, Italy, Germany.Pakistan, Kazakhstan, Mali, Burkina Faso, Ghana, Mozambique
