Galvanization Mil 10 300gsm Defensive Barrier

Height 7'3" Military Sand Wall Hesco Defensive Barriers Army Gabion Hesco Bastion Afghanistan Hesco

Hesco barrier also named as Hesco bastion, Hesco defense wall, Hesco blast wall, Sand cage, Welded gabion box, Defense blast wall for military use, Wire mesh gabion box, Stone cage etc.

Hesco barrier is a kind of modern gabion for Military fortification and Flood control. It is made of a collapsible wire mesh container and heavy duty fabric liner, it can be used in separate cell or some cells joint together .

Hesco Defensive Barriers Detail Specification

Wire diameter: 4mm, 5mm
Mesh size: 50mmx50mm, 76.2mmx76.2mm,100mmx100mm
Panel size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, it also can be customized according to customers requirement
Geotextile: in heavy duty non-woven polypropylene
Finish: hot dipped galvanized, galfan coated

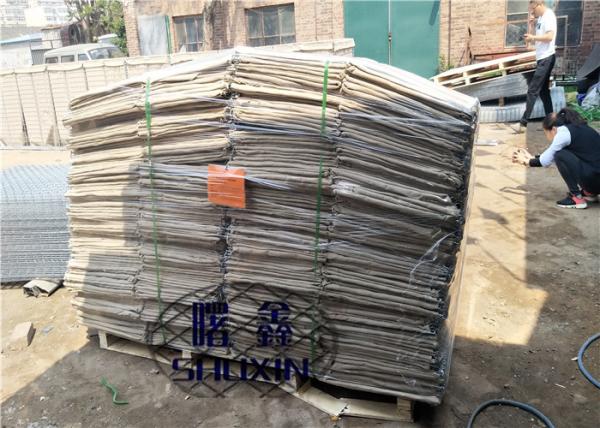

Packing: packed in pallet then wrapped with shrink film
Hesco Defensive Barriers Specification

Model	Height	Width	Length	Internal Cells
SX-1(Mil 1)	54”(1.37m)	42”(1.06m)	32’9”(10m)	5+4=9 cells
SX-2(Mil 2)	24”(0.61m)	24”(0.61m)	4’(1.22m)	2 cells
SX-3(Mil 3)	39”(1.0m)	39”(1.0m)	32’9”(10m)	5+5=10 cells
SX-4(Mil 4)	39”(1.0m)	60”(1.52m)	32’9”(10m)	5+5=10 cells
SX-5(Mil 5)	24”(0.61m)	24”(0.61m)	10’(3.05m)	5 cells
SX-6(Mil 6)	66”(1.68m)	24”(0.61m)	10’(3.05m)	5 cells
SX-7(Mil 7)	87”(2.21m)	84”(2.13m)	91’(27.74m)	5+4+4=13 cells
SX-8(Mil 8)	54”(1.37m)	48”(1.22m)	32’9”(10m)	5+4=9 cells
SX-9(Mil 9)	39”(1.0m)	30”(0.76m)	30’(9.14m)	6+6=12 cells
SX-10(Mil 10)	87”(2.21m)	60”(1.52m)	100’(30.5m)	5+5+5+5=20 cells
SX-11(Mil 11)	48”(1.22m)	12”(0.30m)	4’(1.22m)	2 cells
SX-12(Mil 12)	84”(2.13m)	42”(1.06m)	108’(33m)	5+5+5+5+5+5=30 cells
SX-19(Mil 19)	108”(2.74m)	42”(1.06m)	10’5”(3.18m)	6 cells

Galvanization Mil 10 300gsm Defensive Barrier

Hesco Defensive Barriers Application

1. Military protection
2. Control and guide of water or flood
3. Flood bank or guiding bank
4. Preventing of rock breaking
5. Water and soil protection
6. Bridge protection
7. Strengthening structure of soil
8. Protection engineering of seaside area.

We have specialized equipments and professional inspectors. We can supply the quality assurance to the customer.

Due to our hard working technicians and the continuously pursue of outstanding quality, we have exported our product to Northern America, Europe, South Africa, Latin America, the Middle East, the Oceania, and Asia, etc.
