76.2×76.2mm 4'6"Height Military Gabion Basket Hesco Barrier With
Geotextile Filter Fabric
1. Introduction :
Gabion Basket Hesco Barrier Military Gabion Box is gabion box. It is a combination of welded wire mesh frame
outside and non-woven geotextile liner inside. Sand, soil, gravel
and blinding are frequently used as filling because of geotextile
liner.
Gabion bastions also known as HESCO Barrier Rock basket retaining wall, hesco barrier, flood control barrier,
etc. which is made of the steel welded mesh and lined with
non-woven geotextile, can be filled with sand, earth, cement,
stone, then as a defensive wall or bunker and widely used in the
military to protect safety.
SHUXIN Company military bastion do a good Job in Military area,
flood controlling now. Now had already went to Front Line of
Battle-filed to act as a good protector for the soldiers.
Specifications of Gabion Basket Hesco Barrier as follows :
1) wire diameter: 4mm-5mm
2) Wire mesh hole: 3''x3''
3) Panel size: 0.61x0.61m, 1.06x1.37m, 2.13x2.21m etc., other sizes
can be produced as requested.
4) Geotextile: In non-woven geotextile, color can be white,
beige-sand color or OEM.
2. Material:
It is made of galvanized welded mesh,spring with other fittings,can
be filled with sand,earth,cement,stone,can be used in separate cell
or some cells joint together.
3. Finish: electro galvanized,hot dipped galvanized,galfan coated,
Gabion Basket Hesco Barrier Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Gabion Basket Hesco Barrier Use Deatils:
Unpack---Pull out and set up-----Connect together---- Fill and
compact----Finished
Features :
1. A pre-fabricated gabion of galvanized welded mesh steel fitted
with a UV-protecting.
2. Polypropylene geo-textile liner.
3. Filling material is an easy- obtained mix of sand and small
stones.
4. It can be used together to any length, and can be stacked for
additional height.

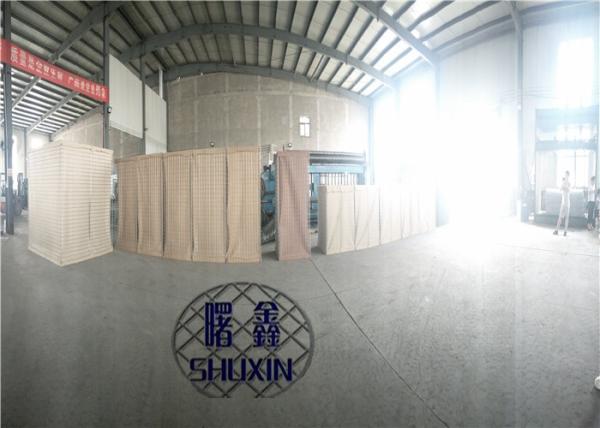

Production Process
Loading container:
