Mil 3 4mm 75cm x 75cm Hesco Baskets Bastions Defensive Barrier
Military Sand Filled Wall
Easy to install
1. Unpack the collapsible wire mesh container from package.
2. Unfold the barrier and connect barriers to reach the designed
length
3. Fill soil, sand or gravel into the container. The common machine
is front end loader.
4. Compact the content
5. Add layers if required.
The Dimension / Specification for Military HESCO Barrier:
Product Name | Hesco Barrier |
Product Type | Welded Mesh |
Material | Galvanized Steel Wire or Galfan/zinc-5% Aluminum Wire |
Wire Diameter | 4.0, 5.0mm, Spring Wire Diameter: 4mm |
Geotextile | 250g-400g |
Geotextile colour | Sand clolor, Brown, Gray,and Military Green. |
Mesh hole | 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm |
Brief Introduction:
Wire diameter: 4mm, 5mm
Mesh size: 50mmx50mm, 75mmx75mm,76.2mmx76.2mm,100mmx100mm
Panel size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, it also can be customized
according to customers requirement
Geotextile: in heavy duty non-woven polypropylene
Finish: hot dipped galvanized, galfan coated after welded
Packing: wrapped with shrink film or packed in pallet.
History of development for Military HESCO Bastion in Shuxin
Factory:

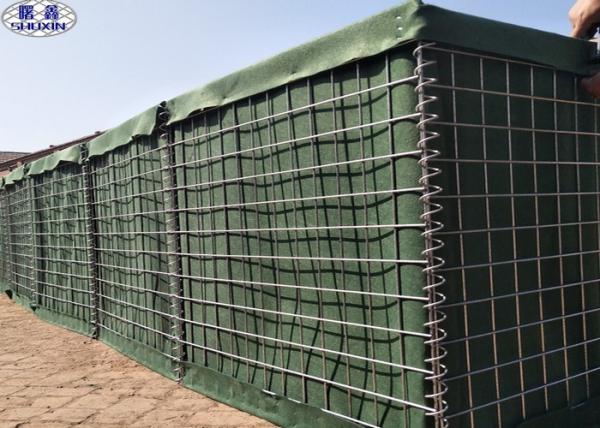

Hesco barrier also named as hesco bastion,hesco defense wall,sand
cage,welded gabion box,etc.It is aprefabricated,multi- cellular
system,made of zinc coated steel welded mesh and lined with
non-woven geo- textile.Units can be extended and joined using the
provided joining pins.It is easy installed with using minimal
manpower and commonly available equipment.After extended,it is
filled into sand,stone,then hesco barrier likes a defence wallor
bunker.It is widely used for military.
We are the designated supplier of the United Nations.
The Size Sheet for Military HESCO Barrier:
| MODEL | Height | Width | Length | NO. of Cells |
| SX-1 | 4'6"(1.37M) | 3'6"(1.06M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-2 | 7'(2.1M) | 3'6"(1.06M) | 108'(33M) | 30 cells(6*5) |
| SX-3 | 2'(0.61M) | 2'(0.61M) | 4'(1.21M) | 2 cells |
| SX-4 | 3'3"(1.0M) | 3'3"(1.0M) | 32'(10M) | 10 cells(2*5) |
| SX-5 | 2'(0.61M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-6 | 5'6"(1.68M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-7 | 7'3"(2.21M) | 7'(2.13M) | 90'(27.74M) | 13 cells(2*4,1*5) |
| SX-8 | 4'6"(1.37M) | 4'(1.22M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-9 | 3'3"(1.0M) | 2'6"(0.76M) | 30'(9.14M) | 12 cells(2*6) |
| SX-10 | 7'(2.12M) | 5'(1.52M) | 95'(30.5M) | 20 cells(4*5) |
| SX-11 | 3'3"(1.0M | 3'3"(1.0M) | 3'3"(1.0M) | 1 Cell |
| SX-12 | 7'3"(2.21M) | 7'3"(2.21M) | 7'3"(2.21M) | 1 Cell |
The Detailed Explanation of Application for HESCO Barrier:
1. Military Fortifications
Most Army Used HESCO Barrier build up a Military Fortifications,
Because it can stack on each other, You can change the width and
height by your demands. More easy and flexible.
2. Shooting Range
Nowadays, A lot of people use HESCO Barrier to build a shooting
range, because its High Strength Defense, more safety.
3. Flood Control
We Mentioned above, The HESCO Barrier is more and more popular and
Homemade. Most Countries Near the coastline choose the HESCO
Barrier as Flood Protection Wall.Even around the hotel they stand
up the HESCO Barrier for Protection Wall.
The Advantages for HESCO Barrier:
1. Collapsible
It is assembled by Panel and Spring Wire, When Loading and
transportation, It is Foldable into one piece.
2. Anti-Corrosion
The Raw material is Hot Dipped Galvanized Wire, it can use 10 years
even more longer, fit for outside protection.
3. Easy Installation
After getting it, Just put it in the right place and open it, Full
filled the sand and earth is okay. Even 2-3 persons can finish it.
4. Quick Displacements
When you want to use it in another place,Just to move it, It can
use many times
5. Easy to repair
If some part is destroyed, Just left it and connect the new one is
okay.
