Low Carbon Steel Wire Welded 75*75mm Military Defensive Barriers
Use For Shooting Field
Defensive Barriers, also known as explosion-proof wall and
flood-proof wall, are new products assembled and sewed by welded
gabion mesh and geotextile. It can hold fine sand, dirt and stones,
can replace sandbags in traditional bunkers, and can be recycled.
Defensive Barriers are different from traditional gabion baskets.
It can hold not only stones but finer silts as well. Filling is
made from local materials and is especially suitable for downstream
or coastal use where stones are scarce. With the help of advanced
tools such as excavators and forklifts, the installation efficiency
is dozens or even hundreds of times that of traditional sandbags.
1. Wire diameter: 4-5mm
2. Mesh size: 3x3 inches (7.62*7.62 cm)
3. Panel Size: 13 species
4. Application: used for any security protection and sudden attack
5. Geotextiles: Heavy Non-woven Polypropylene
6. Color: gray, green, sand, etc
7. Surface Treatment: Hot Dip Galvanizing, Galvanizing Wire
8. Packaging: Packaging with shrink film or pallet
The Standard Technical Specifications from SX1 to SX19
| Welded Military Used Shooting Range Barrier |
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
Defensive barrier application:
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure,
Hebei KN products provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Defensive Barriers can as the Dike against the Flood permanently or
Semi-Permanently.
3. Flood Control Retaining Wall
Wiht sand and earth in it, Gabion Box can as a retaining Wall to
against the flood.
4. Protection Engineering of Seaside Area
Defensive Wall is more and more homemade at the seaside area as
Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
Advantages of Defensive Barrier:
Secure & reliable
Once filled with soil, sand or gravel, forms a solid and strong
barrier with exceptional strength and structural integrity to
protect personnel and equipment from enemy fire. For example:
Two feet thick barriers can be used to stop rifle bullets and shell
fragments.
Four feet thick barriers can prevent most car bombs.
Five feet thick barriers is ideal for preventing penetration and
explosion fragments from rocket propelled grenade.
Convenient usage
Defensive bastion barrier can be used in separate cell or some
cells joined together by joint pins to suit different needs of your
projects. Almost any locally filling material can be used such as
soil, sand, gravel, crushed rock and various other granular
materials.
Labor saving design

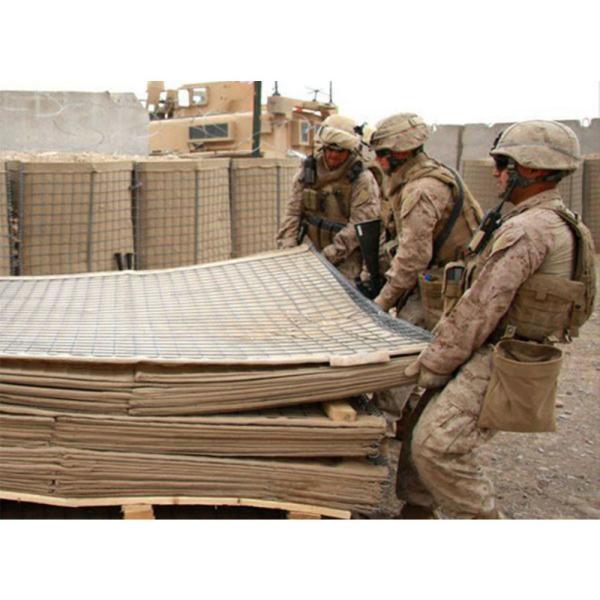

Can be collapsed and stacked on pallets for easy package, handling
and transport, so that it efficiently saves labor cost.
Quick & easy assembly
Provides the easiest deploy methods - just unfold it and fill it
using minimal manpower or commonly available equipment. Previously,
sandbag barrier is considered a slow undertaking as a person can
only fill about 20 sandbags per hour. Yet our KNSCO do ten times
the work.
