Flood Control Defensive Bastion Barrier Galvanized Bastion Bag
Product Introduction
Hot dip galvanized gabion boxes with geotextile are also called
fortresses, protective walls, sand cages, welded gabion boxes, etc.
This is a multi-cellular system made of galvanized welded mesh and
lined with non-woven fabric. The provided connection extension and
connection unit may be used. It is easy to install and requires
minimal manpower and commonly available equipment. After expansion,
it is filled with sand and stones, and then welded with gabion
barriers like defense walls or bunkers. It is widely used for
defensive barriers and flood control.
Application:
1.Fortifications
Most people use defense barriers to build fortifications because
they can be stacked on top of each other. You can change the width
and height according to your requirements. More simple and
flexible.
2.Shooting range
Nowadays, many people use defense barriers to build shooting ranges
because of its high defense strength and safety.
3.Flood control
Defense barriers are becoming more and more popular and easy to
assemble, and good permeability. Most countries near coastlines
choose defense barriers as flood prevention walls. Even around the
hotel, they erected protective walls.
Advantage Of Defensive Barrier:
1.Removable
It is assembled by panels and spring wires, and can be folded into
a whole during loading and transportation.
2.Anticorrosion
The raw material is hot-dip galvanized wire, which can be used for
10 years or more and is suitable for external protection.
3. Easy installation
When you get it, open it in a spacious place and fill it with sand
and mud. Even 2-3 people can finish it.
4. Rapid displacement
When you want to use it in another place, just move it and it can
be used many times.
5. Easy to repair
If a part is damaged, throw it away and connect it with a new one.

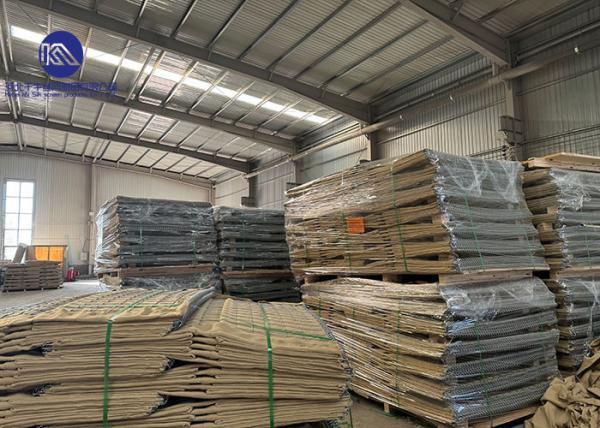

Packing&Shipping
Defensive barrier packing on pallet then wrapped with plastic film
outside .
Besides, customers' request are also available.
Company Profile
Hebei KN Wire Mesh Co,Ltd, was established in 2013 is a
professional manufacturer engagedin the research, development,
production, saleand service. We arelocated in Anping county
hengshui city with convenient transportation access. Dedicated
tostrict quality control and thoughtful customer service, our
experienced staff members arealways available to discuss your
requirements and ensure full customer satisfaction. Our products
are also exported to clients in suchcountries and regions as
Britain France,Germany, USA, UK Kenya,
Zambia,Philippines,Thailand,Korea, New Guinea,Greece, Mexico.We
also welcome OEM and ODM orders. Our company always insist on the
quality strives for the survival, to the credibility of development
the objective, wholeheartedly for the domestic and foreign
customers, with quality products andfirst- class service and
foreign customers, with quality products and first-class service.
Specification
| MODEL | HEIGHT | WIDTH | LENGTH | WEIGHT | CELLS No.s |
| KN-1 Unit | 4'6''(1.37mm) | 3'6''(1.06m) | 32'9”(10m) | 149(kg) | 9 | 1x4+1x5cells |
| KN-2 Unit | 2'(0.61m) | 2'(0.61m) | 4'(1.22m) | 10(kg) | 2 | 1x2cells |
| KN-3 Unit | 3'3”(1.00m) | 3'3”(1.00m) | 32'9”(10m) | 113(kg) | 10 | 2x5cells |
| KN-4 Unit | 3'3”(1.00m) | 5'(1.52m) | 32'9”(10m) | 155(kg) | 10 | 2x5cells |
| KN-5 Unit | 2'(0.61m) | 2'(0.61m) | 10'(3.05m) | 22(kg) | 5 | 1x5cells |
| KN-6 Unit | 5'6”(1.68m) | 2'(0.61m) | 10'(3.05m) | 66(kg) | 5 | 1x5cells |
| KN-7 Unit | 7'3”(2.21m) | 7'(2.13m) | 91'(27.74m) | 936(kg) | 13 | 2x4+1x5cells |
| KN-8 Unit | 4'6”(1.37m) | 4'(1.22m) | 32'9”(10m) | 153(kg) | 9 | 1x4cels+1x5cels |
| KN-9 Unit | 3'3”(1.00m) | 2'6”(0.76m) | 30'(9.14m) | 101(kg) | 12 | 2x6cells |
| KN-10 Unit | 7'3”(2.21m) | 5'(1.52m) | 100'(30.50m) | 1040(kg) | 20 | 4x5cells |
| KN-11 Unit | 4'(1.22m) | 12”(0.30m) | 4'(1.22m) | 16(kg) | 2 | 1x2cells |
| KN-12 Unit | 7'(2.13m) | 3'6”(1.06m) | 108'(33m) | 813(kg) | 30 | 6x5cells |
| KN-19 Unit | 9'(2.74m) | 3'6”(1.06m) | 10'5”(3.175m) | 198(kg) | 6 | 1x6cells |
All dimensions and weight are nominal
Diagrams and products are for iustrative purpose onlv.
|
